CAD/CAM Milling & Processing Workflow:

Step 1: CAD Design & Milling Preparation (20-30 minutes)

• Design bridge framework or implant restoration in CAD software (3Shape, Exocad, DWOS)
• Design with appropriate connector dimensions (minimum 12mm² for 3-unit bridges, 16mm² for longer spans)
• Verify adequate framework thickness (minimum 0.5mm for Ti-6Al-4V vs 0.8mm for pure titanium)
• No enlargement factor needed - titanium alloy does not shrink during processing
• Export STL file with correct orientation for milling
• Select titanium alloy-specific milling program in CAM software

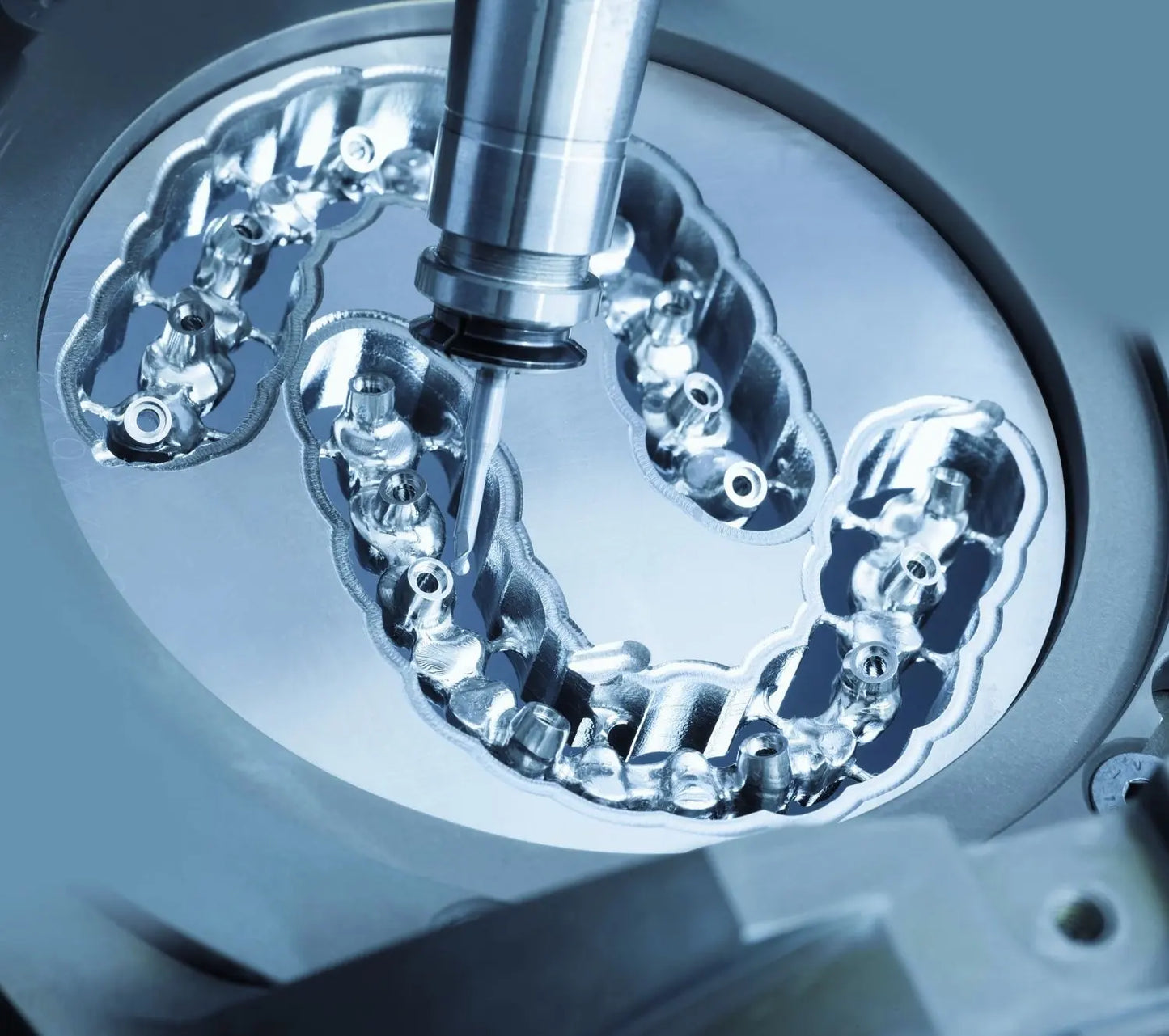

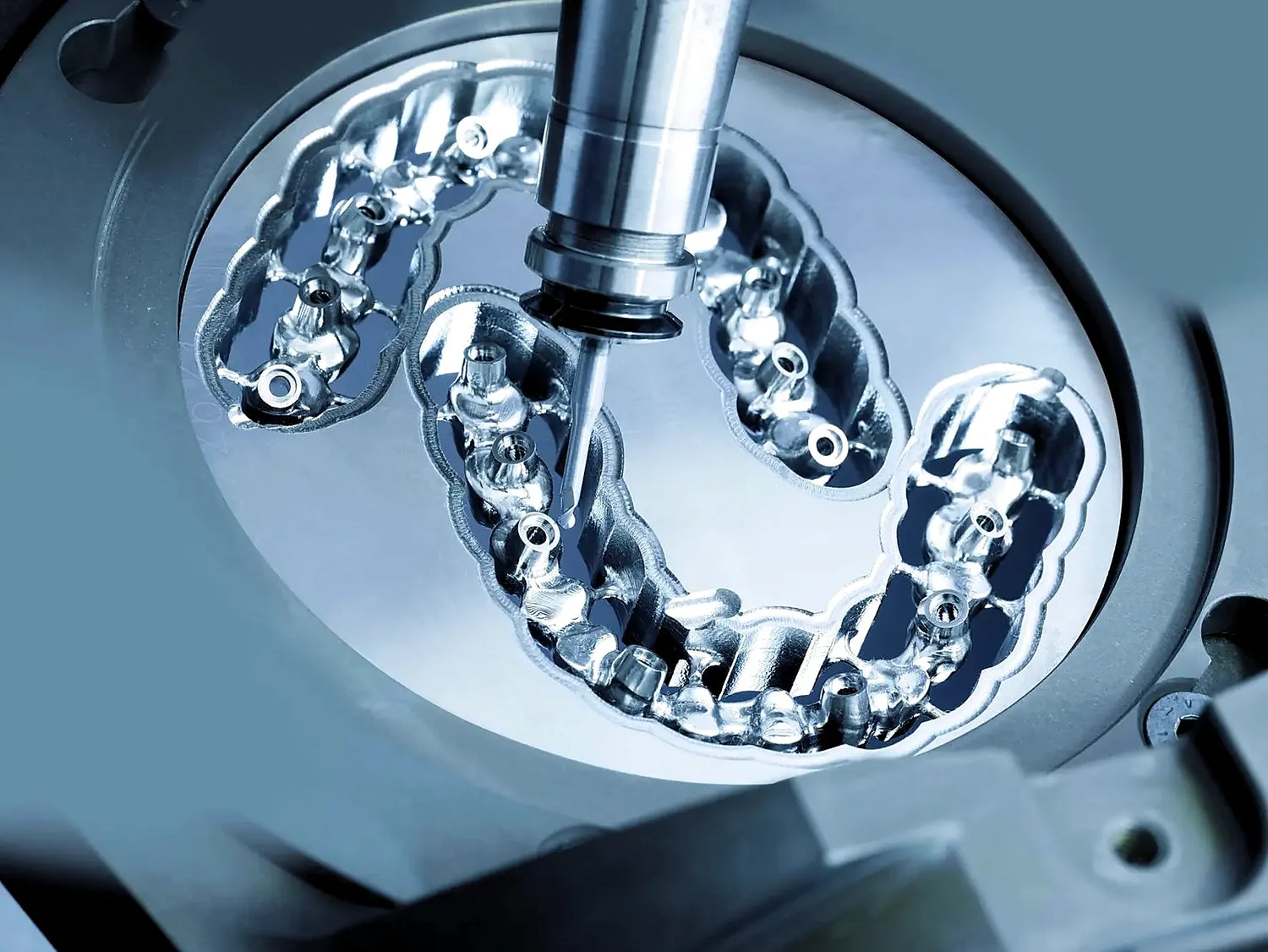

Step 2: Titanium Alloy Milling (40-90 minutes) - Highly Demanding Process

• Recommended Parameters:
• • Bur type: Premium carbide burs with TiAlN coating (titanium alloy-specific, higher grade than pure Ti)
• • Bur size: 0.5-2.0mm diameter depending on detail level
• • Spindle speed: 12,000-25,000 RPM (lower than pure titanium due to higher hardness)
• • Feed rate: 0.5-1.2 mm/s (slower than pure titanium - material is significantly harder)
• • Cooling: Wet milling absolutely mandatory - Ti-6Al-4V generates extreme heat
• • Milling strategy: Climb milling with constant engagement to minimize tool wear
• Critical: Ti-6Al-4V is one of the most difficult dental materials to mill - expect 3-4x longer milling times than PMMA and 30-50% longer than pure titanium
• Use only fresh, sharp burs designed specifically for titanium alloys
• Monitor coolant flow continuously - inadequate cooling causes rapid tool failure and material damage
• Expect higher tool wear - bur life is 30-50% shorter than with pure titanium

Step 3: Surface Treatment & Finishing (25-40 minutes)

• Mechanical Finishing:
• • Remove milling tabs with diamond discs or carbide burs
• • Smooth surfaces with titanium alloy-specific polishing burs
• • Use progressive grits: coarse → medium → fine → extra fine
• • Achieve smooth surface to reduce plaque accumulation
• Surface Treatment Options:
• • Sandblasting: 50-110 micron Al₂O₃ at 2-4 bar pressure for roughened surface
• • Acid etching: HF/HNO₃ mixture for enhanced surface activation (implant components)
• • Polishing: High-gloss finish for supragingival surfaces using diamond paste
• • Passivation: Nitric acid treatment to enhance oxide layer stability
• Clean thoroughly with ultrasonic cleaner and steam to remove all debris

Step 4: Quality Control & Delivery (15-20 minutes)

• Verify fit on model or analog - Ti-6Al-4V allows tighter tolerances than pure Ti
• Check connector dimensions and strength (critical for long-span bridges)
• Inspect surface finish and margins for smoothness
• Verify no sharp edges, rough areas, or milling defects
• Measure framework thickness in critical areas
• Clean and sterilize if required
• Package in protective container with handling instructions

⚠️ Critical Milling Considerations for Ti-6Al-4V: Titanium alloy milling is significantly more demanding than pure titanium. The material's high strength (895-1050 MPa) and low thermal conductivity make it extremely challenging to machine. Always use premium titanium alloy-specific carbide burs with TiAlN coating, maintain abundant wet cooling, and expect 30-50% longer milling times compared to pure titanium. Proper parameters and fresh tools are essential to prevent tool breakage and ensure quality results.

Why Choose Titanium Alloy Over Pure Titanium?

When to Choose Ti-6Al-4V Titanium Alloy:

Choose titanium alloy when maximum strength is the priority:

• Long-Span Bridges (3+ units): 895-1050 MPa strength provides adequate connector strength for extended spans
• High-Stress Posterior Areas: Superior strength withstands heavy occlusal forces in molar regions
• Thin-Wall Designs: High strength allows thinner frameworks (0.5mm vs 0.8mm for pure Ti) - reduced tooth preparation
• Full-Arch Implant Frameworks: Strength and rigidity ideal for screw-retained full-arch bridges
• Patients with Bruxism: Better resistance to high cyclic loads from grinding/clenching
• Minimal Framework Thickness Required: When space is limited and maximum strength per mm is needed

When to Choose Pure Titanium (Grade 2) Instead:

Choose pure titanium when biocompatibility is the priority:

• Implant-Supported Single Crowns: Superior osseointegration more important than extra strength
• Custom Implant Abutments: Direct bone contact benefits from pure Ti's superior biocompatibility
• Patients with Metal Sensitivities: Hypoallergenic pure Ti eliminates Al/V sensitivity concerns
• Implant Bars and Overdenture Frameworks: Osseointegration critical, strength adequate with pure Ti
• Maximum MRI Compatibility Needed: Pure Ti produces fewer artifacts than Ti-6Al-4V
• Standard Strength Adequate: When 550-700 MPa is sufficient for the application

Titanium Alloy vs Other Dental Metals

Recommendation: Choose Ti-6Al-4V for long-span bridges and high-stress applications requiring maximum strength. Choose Pure Titanium for implant-supported restorations, prioritizing osseointegration and biocompatibility. Choose Co-Cr for removable partial denture frameworks where osseointegration is not required.

Designed for Dental Laboratories

OnePro Dental works directly with dental laboratories worldwide, providing reliable CAD/CAM materials that combine performance, consistency, and cost efficiency.

The Titanium Alloy Discs are an excellent choice for labs seeking high-strength materials for long-span bridges and demanding restorations.

Frequently Asked Questions (FAQ)

💎 Product Features & Material Properties

Q: What makes Ti-6Al-4V stronger than pure titanium?
A: Ti-6Al-4V's superior strength (895-1050 MPa vs 550-700 MPa for pure Ti) comes from its dual-phase (α+β) microstructure. The addition of 6% aluminum strengthens the α-phase, while 4% vanadium stabilizes the β-phase. This combination creates a material nearly twice as strong as pure titanium while maintaining excellent biocompatibility and corrosion resistance. The strength advantage allows thinner framework designs and longer bridge spans.

Q: Is Ti-6Al-4V safe for dental use?
A: Yes! Ti-6Al-4V Grade 5 ELI (Extra Low Interstitial) is FDA-approved and widely used in medical and dental applications. It has excellent biocompatibility with proven long-term clinical success. However, unlike pure titanium which is completely hypoallergenic, extremely rare cases of aluminum or vanadium sensitivity have been reported (less than 0.1% of patients). For patients with known metal sensitivities, pure titanium may be preferred.

Q: When should I choose Ti-6Al-4V instead of pure titanium?
A: Choose Ti-6Al-4V when strength is the priority:
• Long-span bridges (3+ units) - Need 895-1050 MPa strength for adequate connectors
• High-stress posterior areas - Heavy occlusal forces require maximum strength
• Thin-wall designs - High strength allows 0.5mm thickness vs 0.8mm for pure Ti
• Full-arch implant frameworks - Rigidity and strength critical for screw-retained bridges
• Patients with bruxism - Better resistance to cyclic loading

Choose pure titanium when biocompatibility/osseointegration is the priority (implant abutments, single crowns on implants).

Q: What is the dual-phase (α+β) microstructure?
A: Ti-6Al-4V contains two distinct crystal phases:
• α-phase (HCP structure): Provides corrosion resistance and biocompatibility
• β-phase (BCC structure): Contributes high strength and good machinability
The combination of both phases creates optimal mechanical properties - higher strength than pure α-phase titanium while maintaining excellent corrosion resistance and biocompatibility.

🔧 Milling & Processing

Q: Which CAD/CAM systems can mill Ti-6Al-4V?
A: Ti-6Al-4V requires professional 5-axis CAD/CAM milling systems with adequate spindle power and rigidity. Compatible systems include Roland (DWX-52D/52DC), VHF (K5/K6), Amann Girrbach (Ceramill Motion 2), Sirona (inLab MC X5), and similar high-end machines. Standard 4-axis or desktop machines typically lack the power and rigidity needed for titanium alloy milling. Verify your system's titanium alloy capability before purchasing.

Q: What milling parameters should I use for Ti-6Al-4V?
A: Recommended parameters for Ti-6Al-4V titanium alloy:
• Bur type: Premium carbide with TiAlN coating (titanium alloy-specific, higher grade than pure Ti burs)
• Bur size: 0.5-2.0mm diameter
• Spindle speed: 12,000-25,000 RPM (lower than pure Ti due to higher hardness)
• Feed rate: 0.5-1.2 mm/s (30-50% slower than pure titanium)
• Cooling: Wet milling absolutely mandatory - use abundant coolant
• Strategy: Climb milling with constant engagement
Critical: Ti-6Al-4V is one of the hardest dental materials to mill - expect significantly longer times and higher tool wear than pure titanium.

Q: Why does Ti-6Al-4V milling take so much longer than pure titanium?
A: Ti-6Al-4V is significantly harder and stronger than pure titanium (895-1050 MPa vs 550-700 MPa). This requires slower feed rates, more conservative cutting parameters, and more frequent tool changes. Expect milling times 30-50% longer than pure titanium and 3-4x longer than PMMA for similar geometries. The superior strength and thin-wall capability justify the additional processing time for demanding applications.

Q: How often should I replace Ti-6Al-4V milling burs?
A: Ti-6Al-4V causes significantly higher tool wear than pure titanium. Typical bur life:
• Roughing burs: 2-4 restorations (vs 3-5 for pure Ti)
• Finishing burs: 4-6 restorations (vs 5-8 for pure Ti)
Replace burs when you notice: increased milling time (>20%), poor surface finish, excessive vibration, chatter, or visible wear. Using dull burs on Ti-6Al-4V generates extreme heat and can damage both tools and material. Budget for higher tooling costs with titanium alloy.

🌉 Clinical Applications

Q: Can Ti-6Al-4V be used for long-span bridges?
A: Yes! Ti-6Al-4V is specifically recommended for long-span bridges (3+ units) where pure titanium's strength may be inadequate. The 895-1050 MPa tensile strength provides sufficient connector strength for extended spans. Design guidelines:
• 3-unit bridges: Minimum 12mm² connector cross-section
• 4-unit bridges: Minimum 16mm² connector cross-section
• 5+ unit bridges: Minimum 20mm² connector cross-section
Ti-6Al-4V's high strength allows these connector sizes to be achieved with thinner frameworks compared to pure titanium.

Q: What is the minimum framework thickness for Ti-6Al-4V?
A: Ti-6Al-4V's high strength allows thinner frameworks than pure titanium:
• Minimum thickness: 0.5mm in non-stress-bearing areas
• Recommended thickness: 0.6-0.8mm for optimal strength and durability
• Connector areas: 0.8-1.0mm minimum for bridges
• Occlusal surfaces: 1.0-1.5mm for adequate wear resistance

Compare to pure titanium which requires 0.8mm minimum (vs 0.5mm for Ti-6Al-4V). This 30-40% thickness reduction allows more conservative tooth preparation and improved esthetics.

Q: Can Ti-6Al-4V be used for implant-supported restorations?
A: Yes, Ti-6Al-4V works well for implant-supported bridges and full-arch frameworks where strength and rigidity are priorities. However, for components requiring direct bone contact (custom abutments, implant bars), pure titanium's superior osseointegration may be preferred. Ti-6Al-4V is excellent for:
• Screw-retained full-arch bridges (All-on-4, All-on-6)
• Multi-unit implant bridges (3+ units)
• High-strength implant frameworks

For single-unit implant crowns or custom abutments, pure titanium's superior biocompatibility and osseointegration typically outweigh Ti-6Al-4V's strength advantage.

Q: Is Ti-6Al-4V suitable for patients with bruxism?
A: Yes! Ti-6Al-4V's high strength (895-1050 MPa) and excellent fatigue resistance make it well-suited for patients with bruxism or heavy occlusal forces. The material withstands cyclic loading better than pure titanium. However, ensure adequate framework thickness (minimum 0.8-1.0mm in stress-bearing areas) and proper connector dimensions for bridges. Ti-6Al-4V is one of the best metal options for bruxers requiring metal frameworks.

🔬 Surface Treatment & Bonding

Q: How do I bond or cement restorations to Ti-6Al-4V?
A: Ti-6Al-4V requires similar bonding protocols to pure titanium:
For metal-ceramic restorations:
• Sandblast with 50-110 micron Al₂O₃ at 2-4 bar
• Apply titanium-specific bonding agent or primer
• Use low-fusing porcelain designed for titanium alloys

For cementation:
• Sandblast internal surface for mechanical retention
• Use resin-modified glass ionomer or resin cement
• MDP-based primers enhance bond strength to titanium oxide layer

For screw-retained restorations:
• No cementation needed - mechanical retention via titanium screws
• Preferred method for implant-supported frameworks

Q: What surface treatments are recommended for Ti-6Al-4V?
A: Surface treatment depends on application:
For implant-related components:
• Sandblasting: 50-110 micron Al₂O₃ creates micro-roughness
• Acid etching: HF/HNO₃ mixture for surface activation

For supragingival surfaces:
• Polishing: High-gloss finish reduces plaque accumulation
• Use diamond paste and felt wheels for final polish

Optional treatments:
• Passivation: Nitric acid treatment enhances oxide layer stability
• Anodization: Creates colored oxide layer (gold, blue, purple)

📦 Ordering & Specifications

Q: What thickness and diameter options are available?

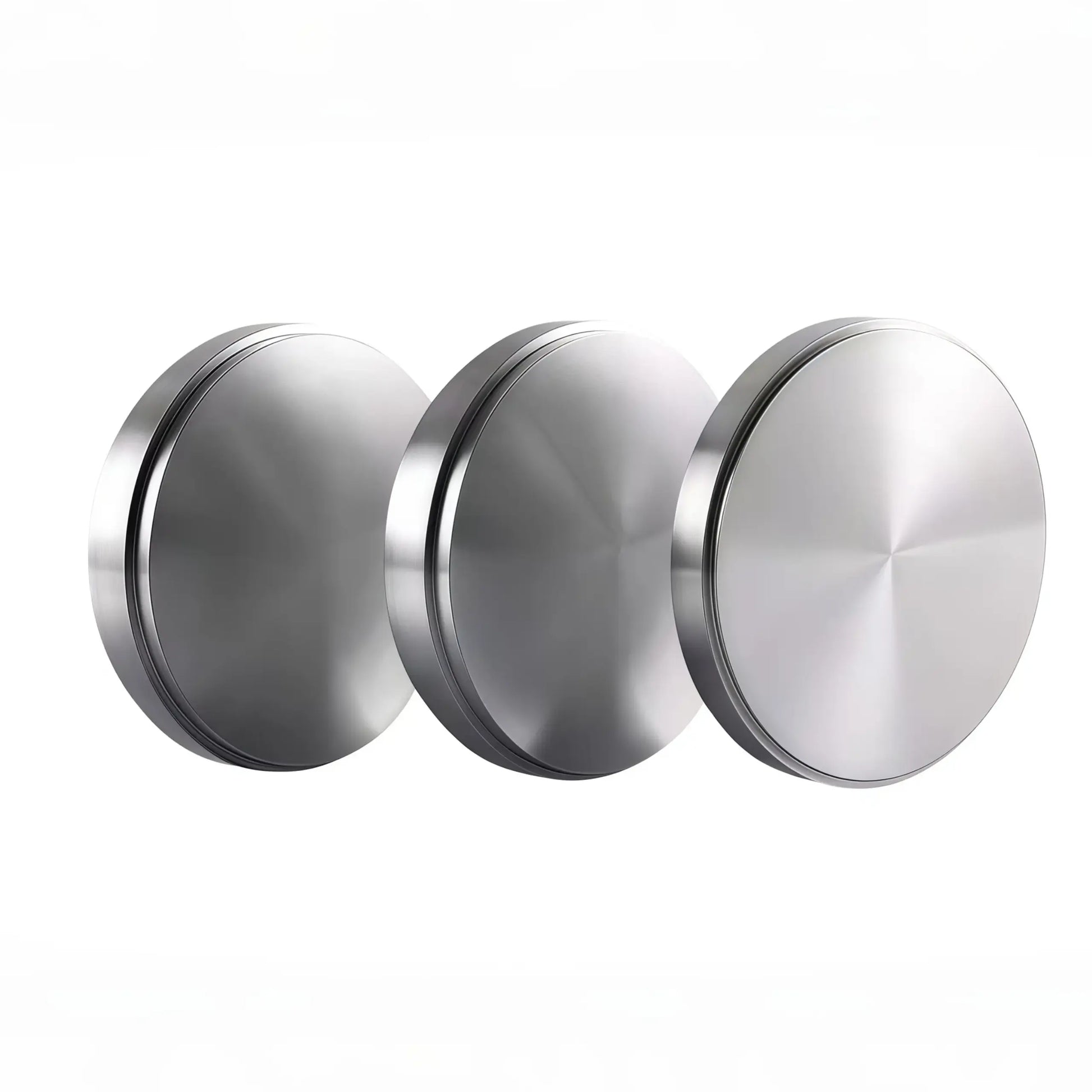

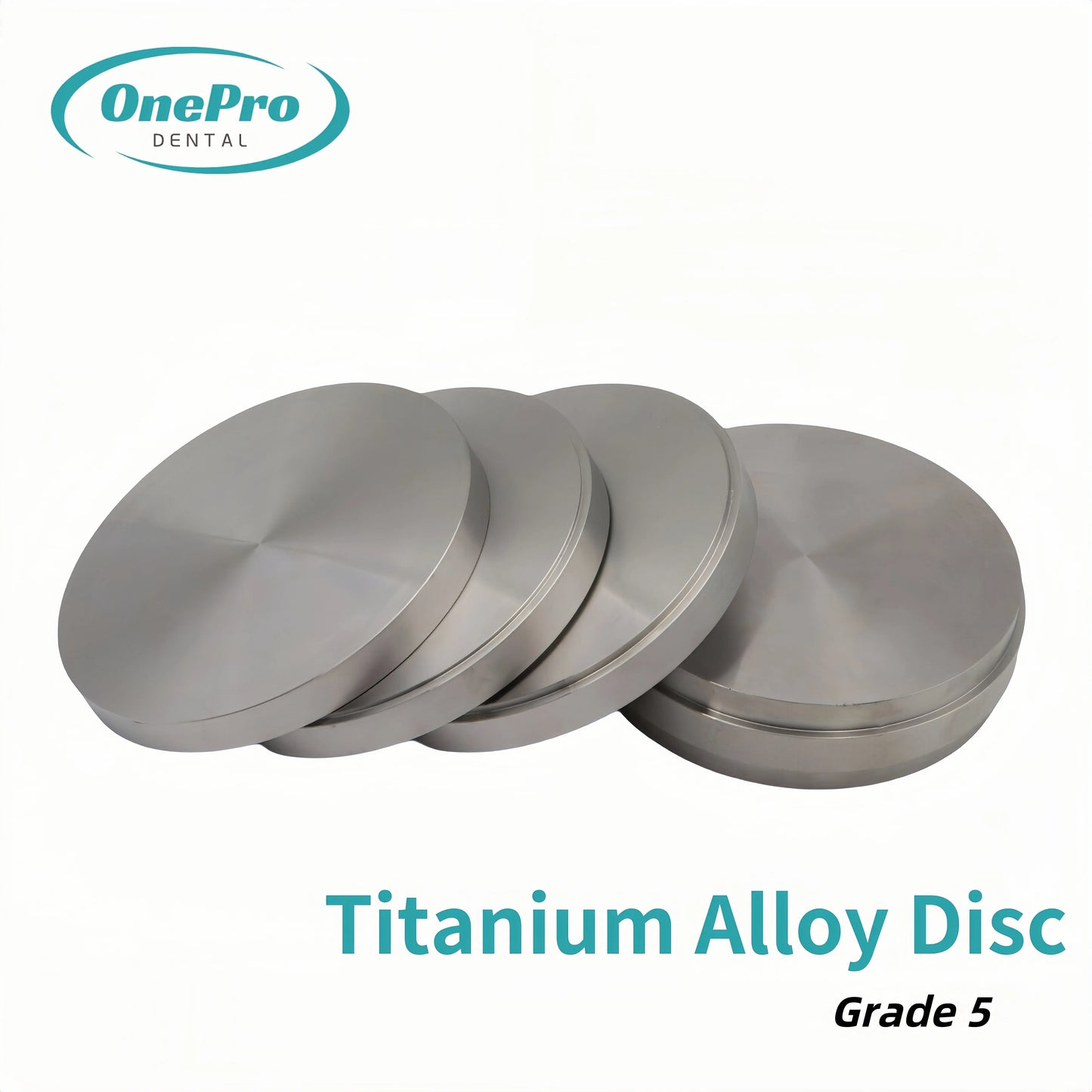

A: OnePro Titanium Alloy Discs are available in:
• Diameter: 98mm (Open System compatible)
• 8 thickness options: 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm
• Price range: $32-$55 per disc (based on thickness)
• Material: Ti-6Al-4V Grade 5 ELI (90% Ti, 6% Al, 4% V)
• Standards: ISO 5832-3, ASTM F136 compliant

Q: How many restorations can I get from one disc?
A: Typical yield from a 20mm disc:
• Single crowns: 6-10 crowns
• 3-unit bridges: 2-3 bridges
• 4-unit bridges: 1-2 bridges
• Full-arch frameworks: 1 framework from 25mm disc

Actual yield depends on restoration size, design complexity, and nesting efficiency. Ti-6Al-4V's high strength allows thinner designs, potentially improving yield compared to pure titanium.

Q: Do you offer sample discs for testing?
A: Yes! We offer sample discs for qualified dental laboratories. Contact our sales team at oneprodental@gmail.com to request samples and test the milling quality and strength firsthand.

Q: What is your shipping time?
A: We offer fast global shipping with delivery in 5-10 business days. Express shipping options are available for urgent orders. Free shipping on orders over $500!

🛠️ Technical Support

Q: What if I need help with Ti-6Al-4V milling parameters?
A: Our technical support team specializes in titanium alloy processing! We provide assistance with:
• Milling parameter optimization for your specific machine
• Premium tool selection and bur recommendations
• Surface treatment protocols
• Troubleshooting milling issues and tool wear
• CAM programming guidance for complex geometries
Contact us at oneprodental@gmail.com anytime.
