• Transparent Clear PMMA disc for dental CAD/CAM milling
  • Dental splint milling workflow using transparent Clear PMMA disc
  • Transparent dental surgical guide made from Clear PMMA on a dental model

Clear PMMA Discs 10–30mm

Transparent CAD/CAM PMMA discs for occlusal splints, night guards, surgical guides, bite plates, and diagnostic appliances.
$9.90
$9.90 $15.90
Shipping calculated at checkout.
  • Secure PayPal checkout
  • Lab support before ordering
  • Worldwide shipping available

OnePro Dental Clear PMMA Discs are designed for CAD/CAM occlusal splints, night guards, surgical guides, bite plates, and other transparent dental appliances.

The clear PMMA material provides reliable milling performance, dimensional stability, and excellent visibility for checking fit, contact areas, and appliance positioning.

Available in nine thicknesses from 10mm to 30mm and in both 98mm Open System and 95mm Zirkonzahn formats.

Why Dental Labs Choose Our Clear PMMA Discs

Designed for clear visibility, stable milling, and reliable transparent appliance workflows.

  • High Optical Clarity

    Transparent PMMA helps dental professionals inspect appliance fit, occlusal contacts, and treatment positioning more easily.

  • ≥120 MPa Flexural Strength

    Reliable PMMA strength for occlusal splints, night guards, bite plates, surgical guides, and functional appliances.

  • 9 Thickness Options

    Available from 10mm to 30mm for thin splints, thicker appliances, guides, diagnostic cases, and varied lab workflows.

  • 95mm & 98mm Compatibility

    Available for 98mm open systems and 95mm Zirkonzahn-style CAD/CAM milling systems.

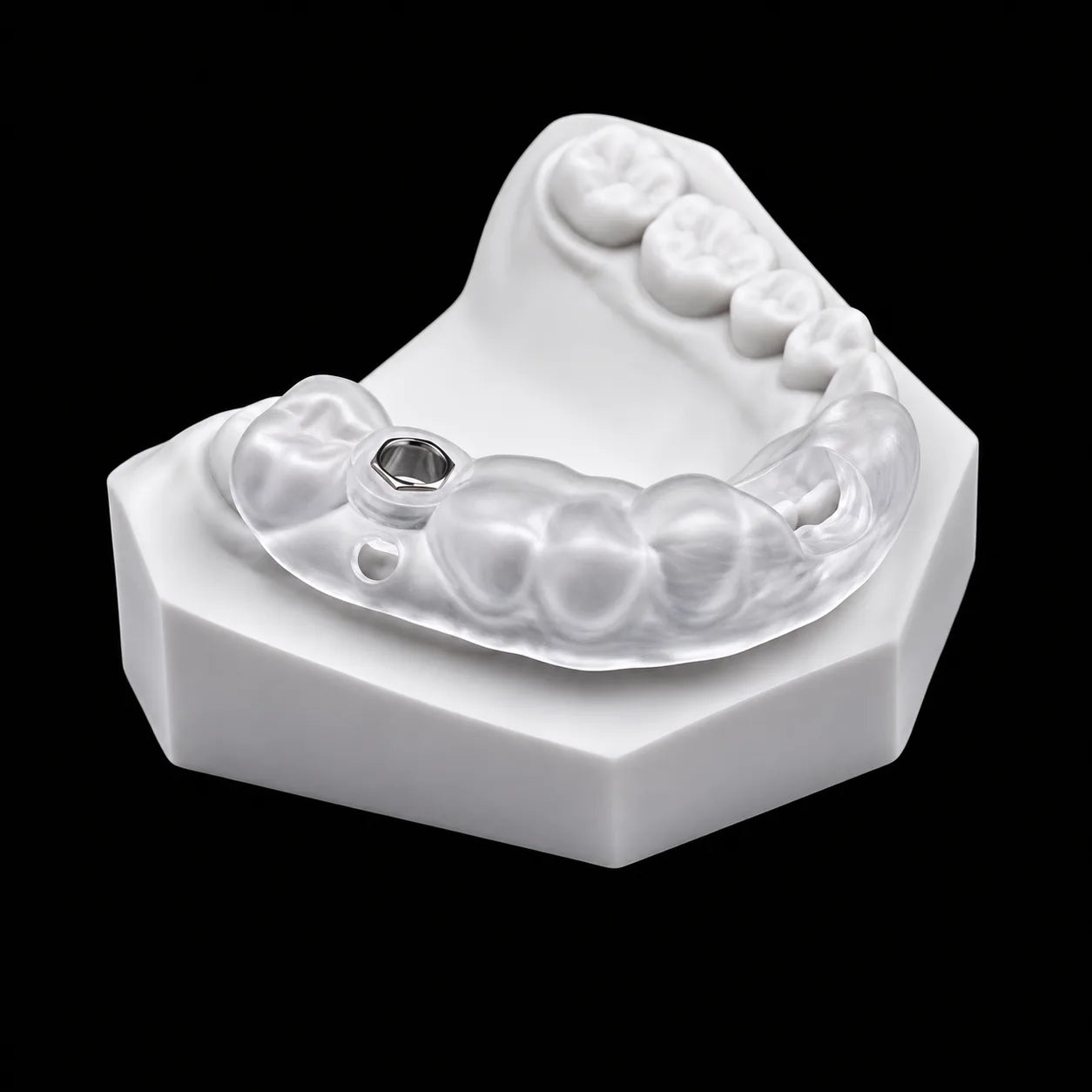

Transparent dental surgical guide made from Clear PMMA on a dental model

Recommended Applications

Clear PMMA discs are designed for dental laboratories producing transparent appliances that require reliable fit, stable milling, and clear visibility during clinical evaluation.

The transparent material makes it easier to inspect occlusal contacts, tooth positioning, guide seating, and appliance adaptation after milling and polishing.

  • Occlusal splints and bruxism guards
  • Night guards and protective appliances
  • Surgical implant guides
  • Bite plates and functional appliances
  • Diagnostic appliances and treatment planning models
  • Transparent try-ins and verification appliances

Technical Specifications

Parameter Value
Material Clear PMMA (Polymethyl Methacrylate)
Appearance Transparent
Flexural Strength ≥120 MPa
Elasticity Modulus >2200 MPa
Solubility ≤0.8 μg/mm³
Water Absorption ≤20 μg/mm³
Residual Monomer Content <1%
Available Thicknesses 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 30mm
System Compatibility 98mm Open System / 95mm Zirkonzahn
Recommended Use Splints, night guards, surgical guides, bite plates, and diagnostic appliances
Processing Method CAD/CAM milling

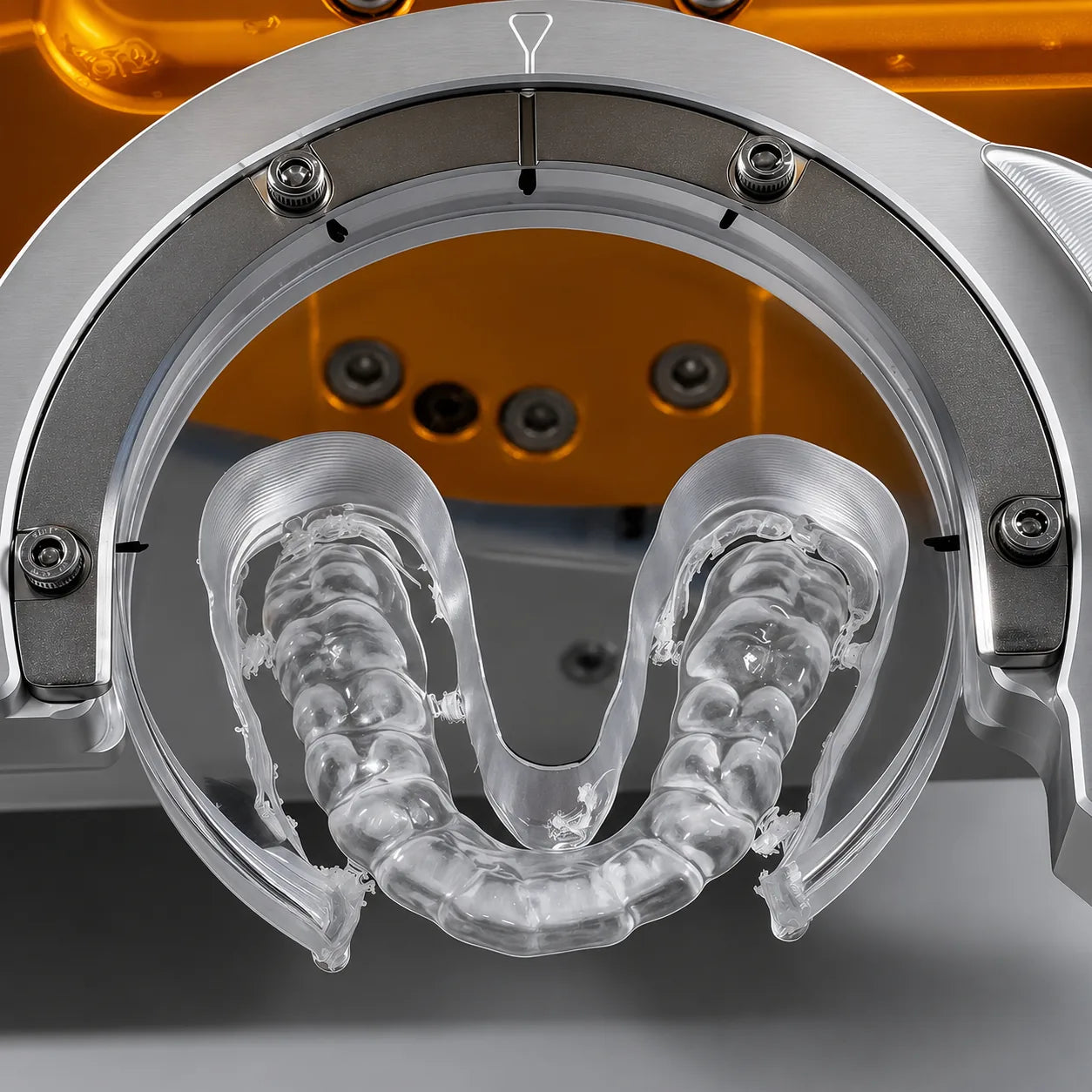

Dental splint milling workflow using transparent Clear PMMA disc

Recommended Milling Workflow

  1. Select the correct system and thickness for the appliance
  2. Design the splint, guide, or functional appliance in CAD software
  3. Mill with sharp PMMA-compatible burs and a suitable milling strategy
  4. Remove connectors carefully and smooth the margins
  5. Progress through fine finishing tools to remove milling marks
  6. Polish progressively to improve surface smoothness and transparency
  7. Clean the appliance thoroughly and inspect the fit and contact areas
  8. Verify transparency, surface quality, and final adaptation before delivery

Clear PMMA vs. Tooth-Colored PMMA

Choose the material based on appliance visibility, restoration type, and esthetic requirements.

  • Clear PMMA

    • Transparent material for visible fit and contact inspection
    • Best for splints, night guards, guides, and functional appliances
    • Requires careful finishing and polishing for maximum clarity

  • Tooth-Colored PMMA

    • Vita-shade material for temporary crowns and bridge
    • Best for provisional restorations and diagnostic try-ins
    • Available in Monolayer and Multilayer shade structures

What is Clear PMMA used for?

Clear PMMA is commonly used for CAD/CAM occlusal splints, night guards, surgical guides, bite plates, functional appliances, and diagnostic appliances that require transparency and reliable dimensional stability.

Is Clear PMMA suitable for night guards?

Yes. Clear PMMA can be used for CAD/CAM night guards and bruxism appliances. The final appliance design, thickness, and clinical suitability should be determined by the dental professional.

Can Clear PMMA be used for surgical guides?

Clear PMMA can be used for selected CAD/CAM surgical guide applications where transparency, dimensional stability, and visibility are required. The guide design and clinical protocol should be verified by the dental professional.

Does Clear PMMA require sintering or crystallization?

No. Clear PMMA is milled directly and does not require sintering or crystallization. After milling, the appliance requires finishing, polishing, cleaning, and final fit verification.

How can maximum transparency be achieved?

Maximum transparency depends on careful finishing and progressive polishing. Milling marks should be removed with fine finishing tools before polishing the surface to a smooth, high-gloss finish.

Can Clear PMMA be milled wet or dry?

Clear PMMA may be processed using an appropriate wet or dry milling strategy, depending on the milling machine, bur system, and CAM recommendations. Sharp PMMA-compatible burs should be used.

What is the difference between 98mm Open System and 95mm Zirkonzahn?

The 98mm version is designed for standard open-system disc holders, while the 95mm version is designed for Zirkonzahn-style milling systems. Always confirm the disc holder format before ordering.

What thickness should I choose?

The suitable thickness depends on the appliance design, vertical dimension, nesting requirements, and milling system. Thinner discs are commonly selected for lower-profile cases, while thicker discs provide more room for larger appliances and complex designs.

Explore More PMMA Disc Options

  • Multilayer PMMA

    Gradient-shade PMMA for esthetic temporaries, anterior cases, full-arch provisionals, and natural-looking restorations.

  • Monolayer PMMA

    Uniform-shade PMMA for temporary crowns, bridges, diagnostic try-ins, and cost-efficient provisional restorations.

  • Pink PMMA

    Gingival-colored PMMA for denture bases, hybrid prosthetics, removable restorations, and everyday laboratory workflows.

Need Help Choosing the Right PMMA Disc?

Tell us your milling system, shade, thickness, and case type. Our team will help you choose the suitable PMMA disc for your dental lab workflow.
