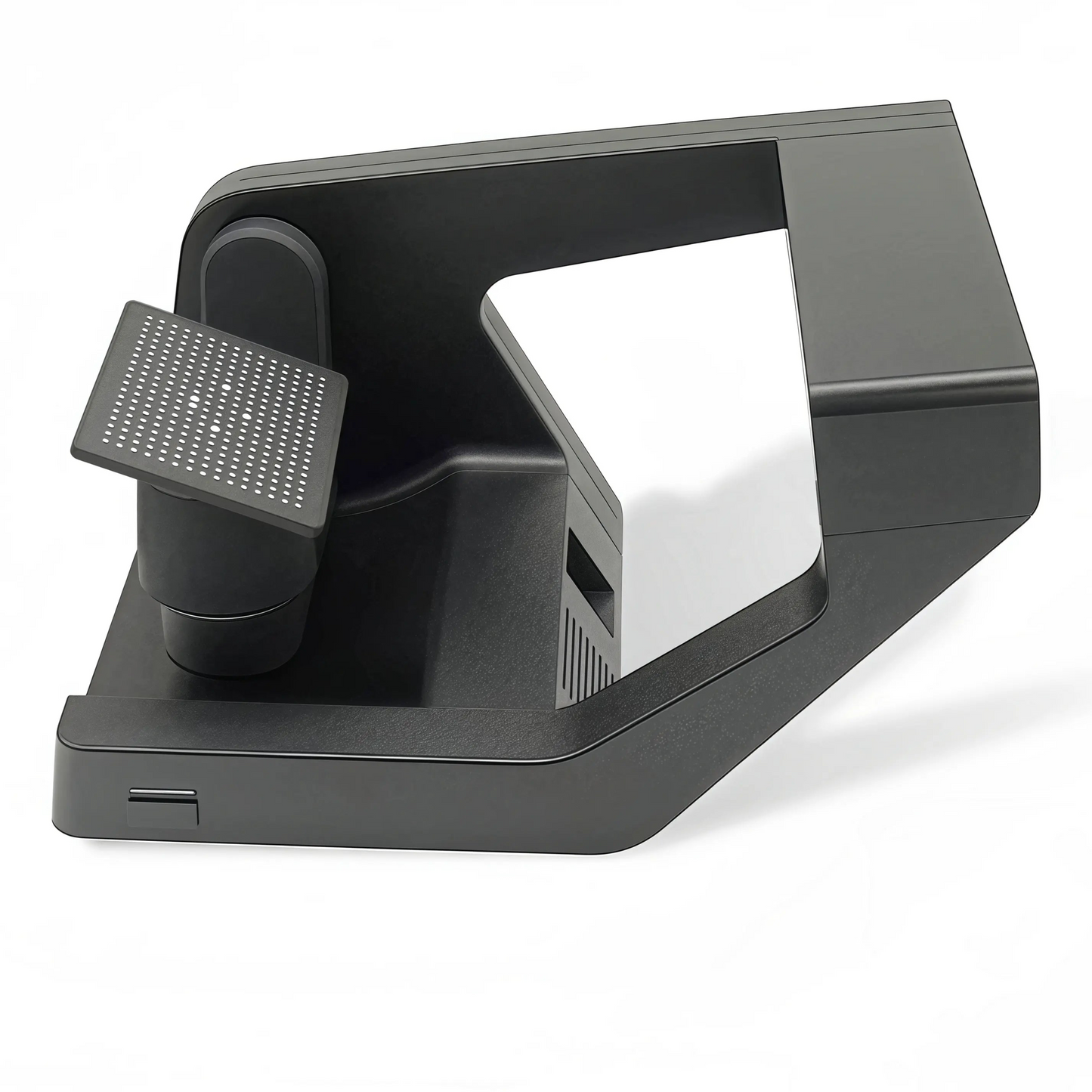

≤8 μm High-Precision Scanning
High-precision digital capture helps reproduce margins, dies, anatomical surfaces and other fine model details required for downstream CAD design.
- Dual 3.7MP camera system
- ≤8 μm accuracy, tested according to ISO 12836

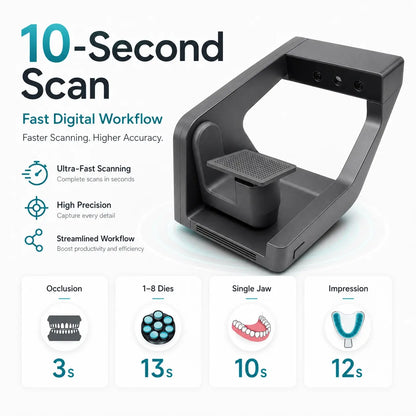

QScan Pro S 3D Dental Scanner
High-Precision Digital Scanning Solution for Modern Dental Laboratories
Regular price
$3,990.00
Sale price
$3,990.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- 10-Second Single-Jaw Scanning
- ≤8 μm Accuracy | Tested to ISO 12836
- Lifetime Software | No Annual Fees
- 1-Year Full-System Warranty
- Free Remote Setup & Support

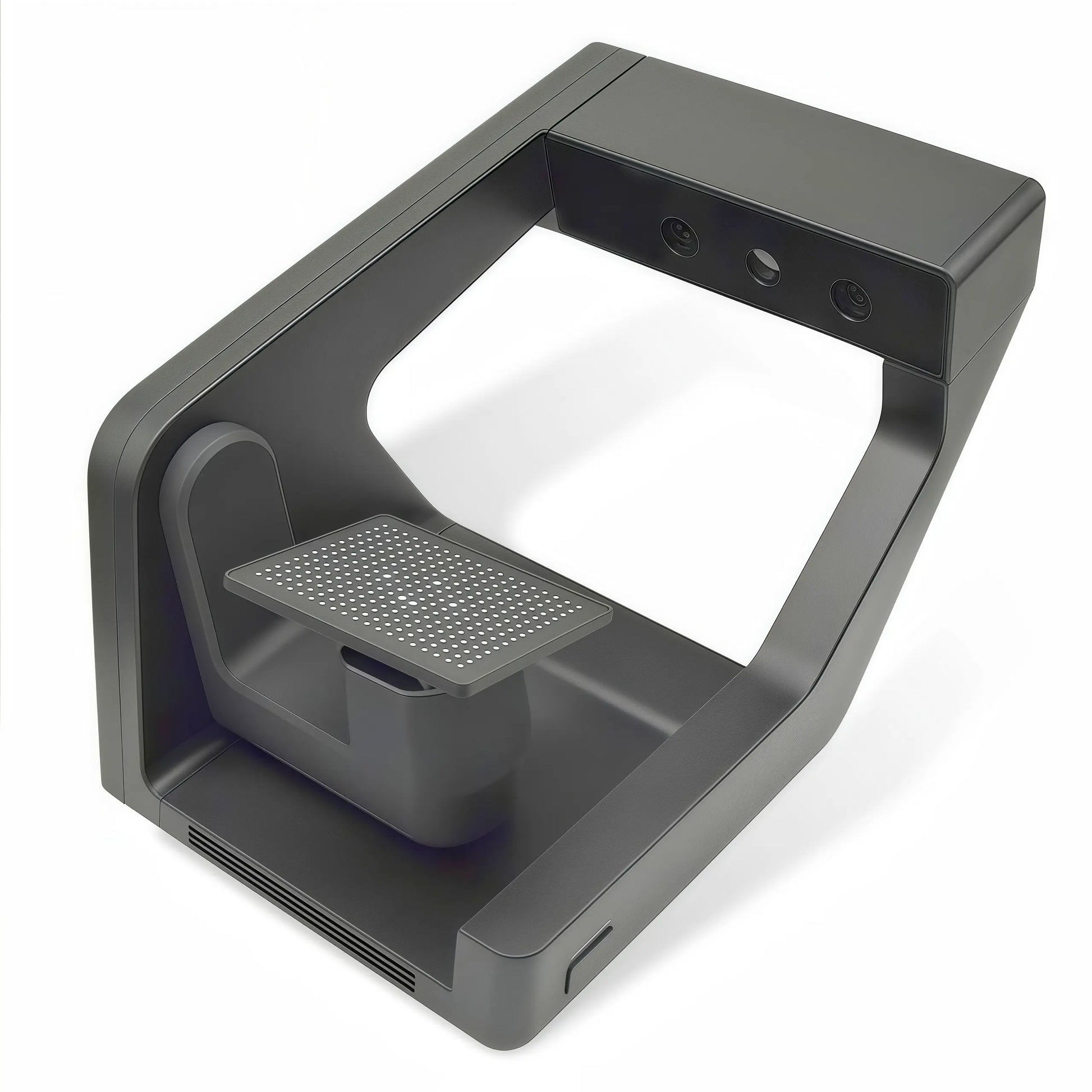

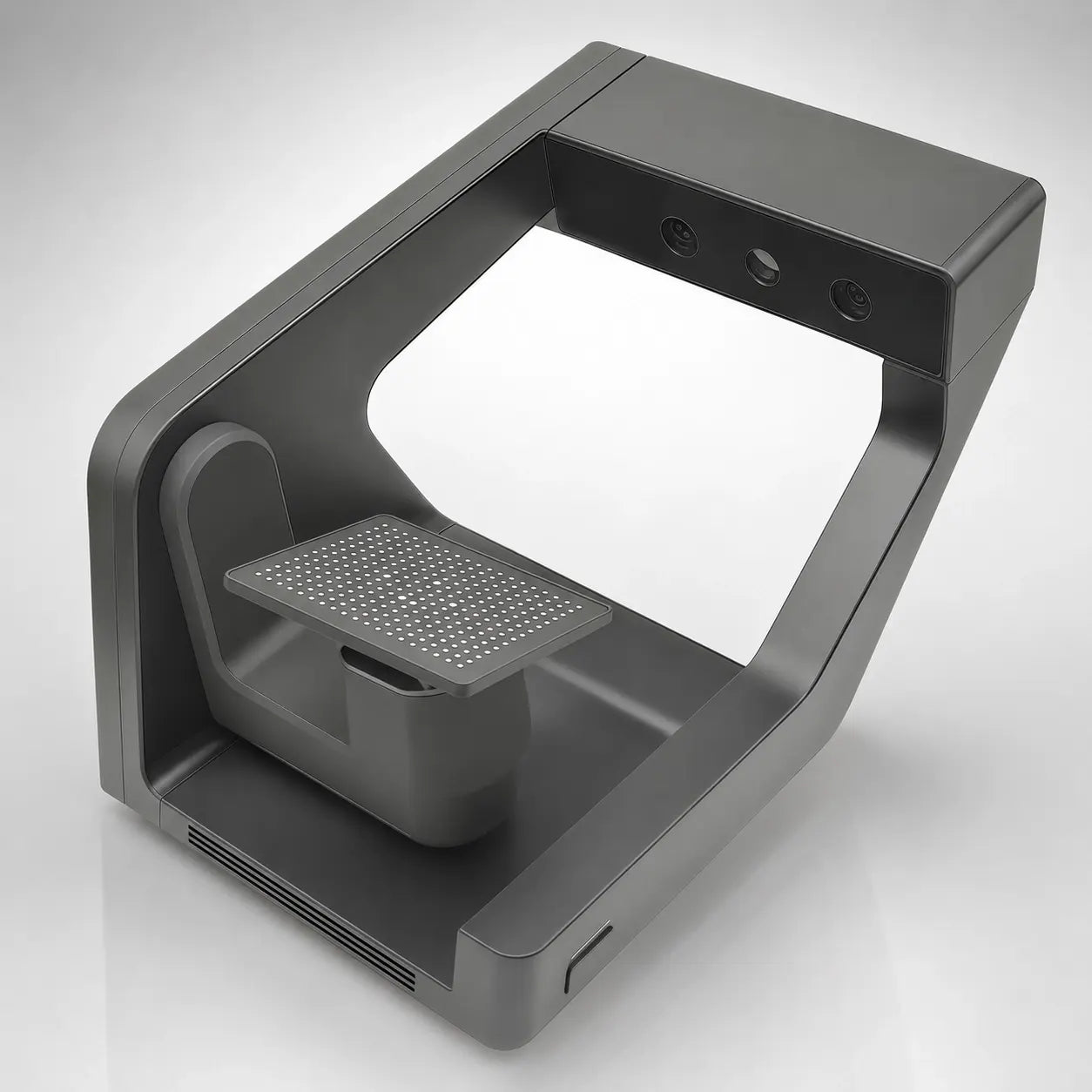

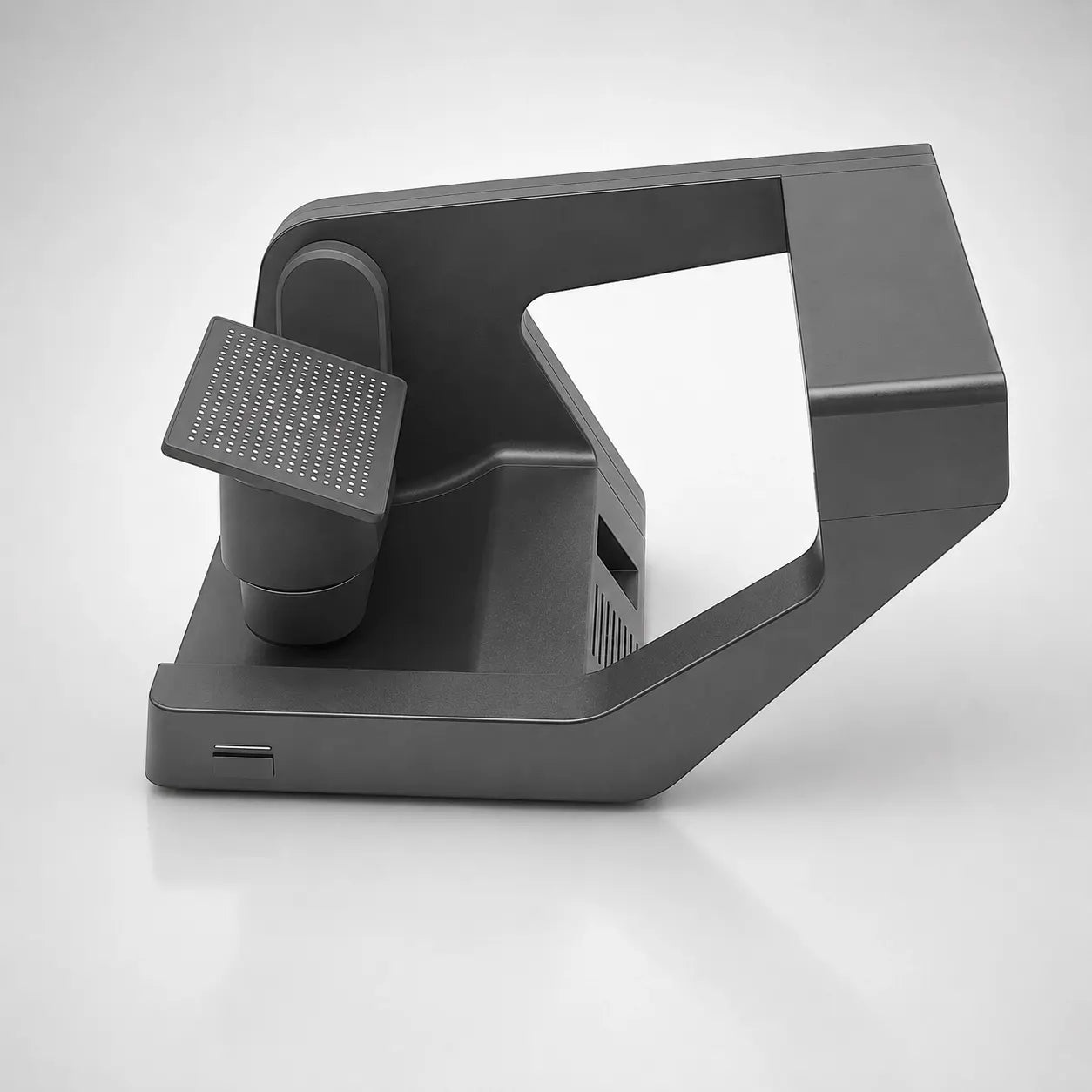

Upgrade your digital dental workflow with the OnePro QScan Pro S 3D Dental Scanner, designed for modern dental laboratories requiring high accuracy, speed, and reliable scanning performance.
Equipped with a 3.7MP dual-camera system and advanced structured light scanning technology, QScan Pro S delivers precise digital data acquisition with 8 μm accuracy (ISO 12836), helping laboratories achieve consistent and detailed CAD/CAM results.
Designed for professional dental applications, QScan Pro S supports multiple scanning modes including single jaw scanning, occlusion scanning, die scanning, impression scanning, articulator scanning, and gingival scanning.
With fast scanning, true-color capture, texture scanning, and an open CAD/CAM workflow, QScan Pro S supports model, die, impression, occlusion, articulator, and gingival scanning for professional digital laboratory workflows.
Six Scanning Modes for Dental Lab Workflows

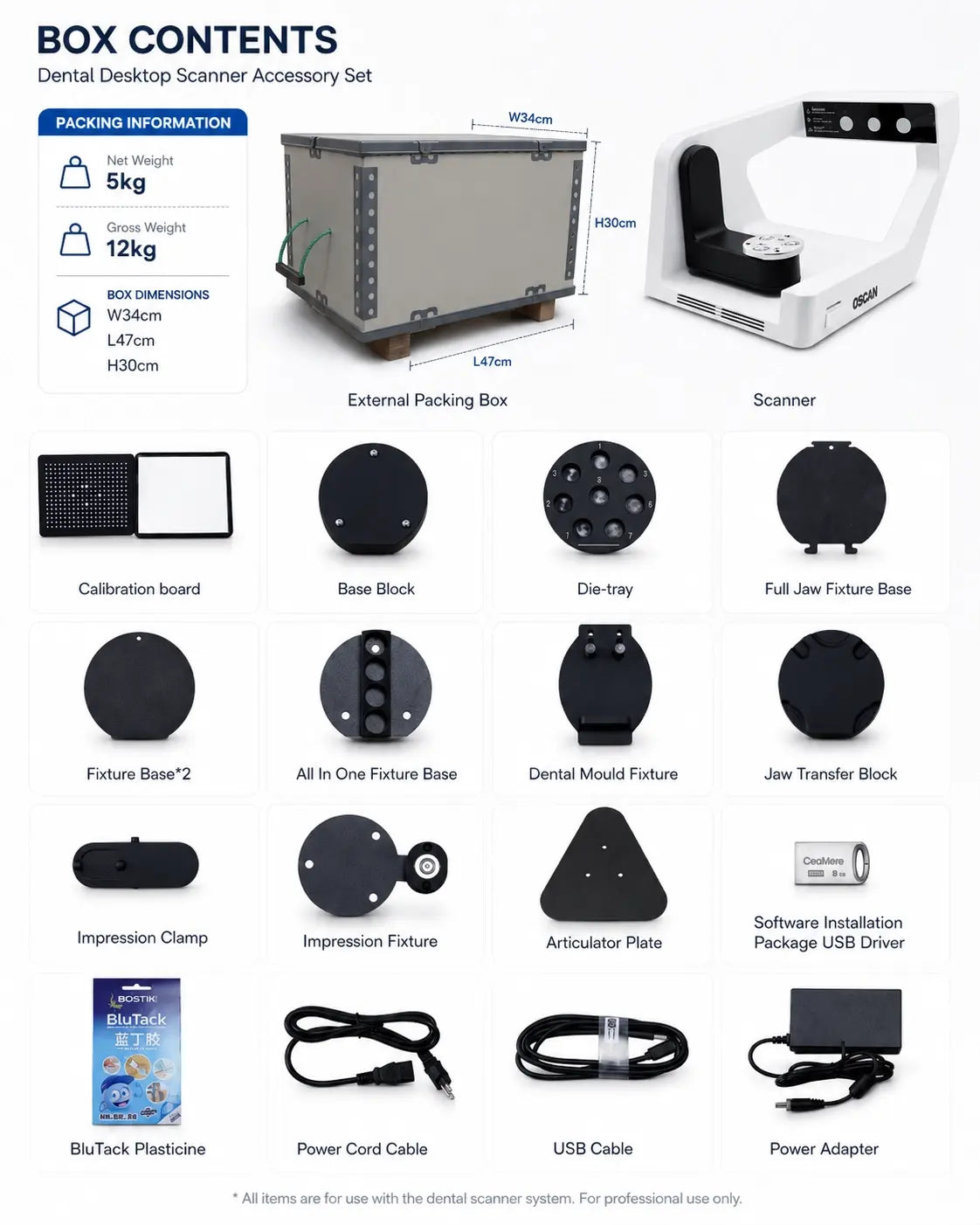

What's in the Box
- Scanner
- Calibration Board
- Base Block

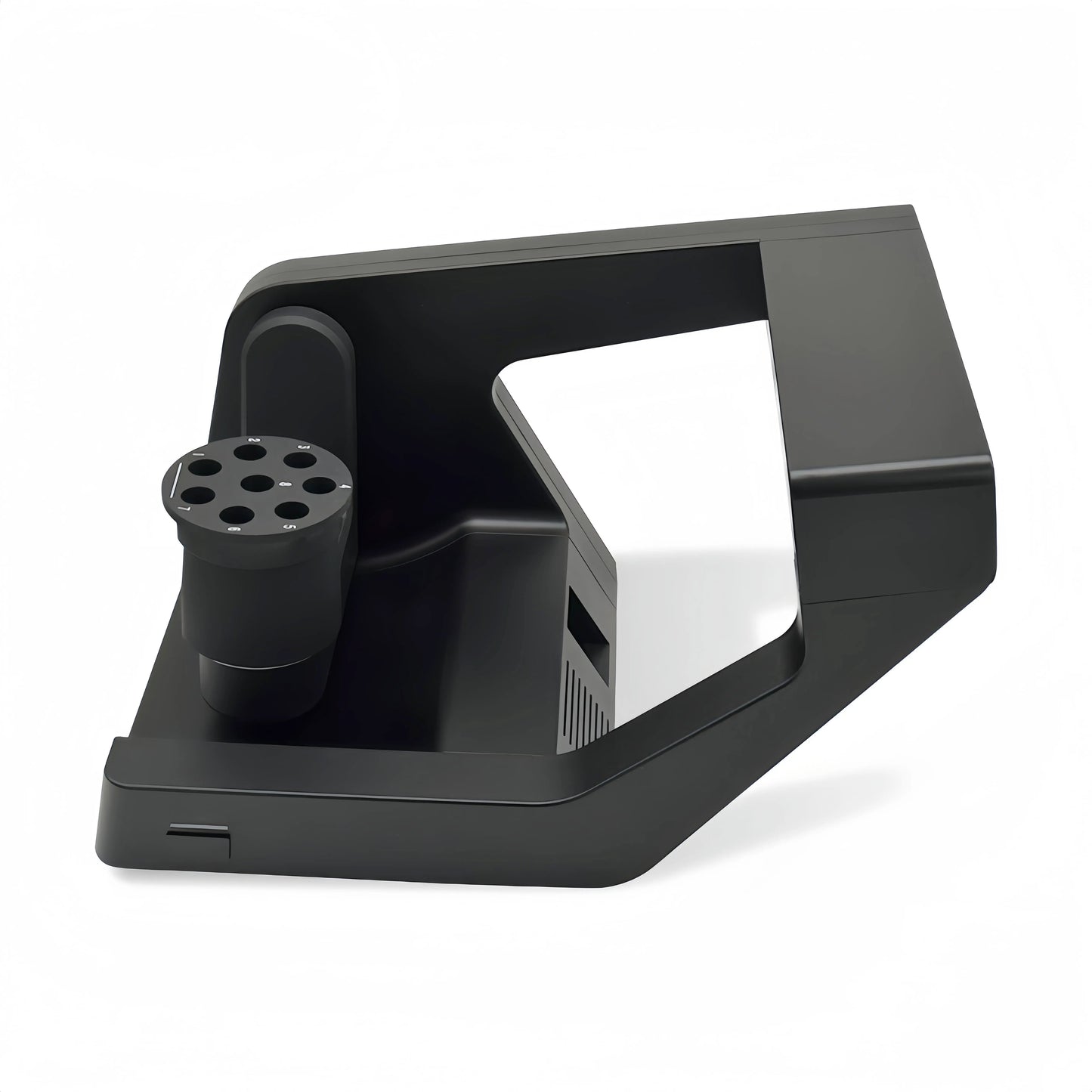

- Die Tray
- Full Jaw Fixture Base
- Fixture Base ×2
- All-in-One Fixture Base
- Dental Mould Fixture
- Jaw Transfer Block
- Impression Clamp
- Impression Fixture
- Articulator Plate
- Software Installation Package USB Drive
- BluTack Plasticine
- Power Cord Cable
- USB Cable
- Power Adapter

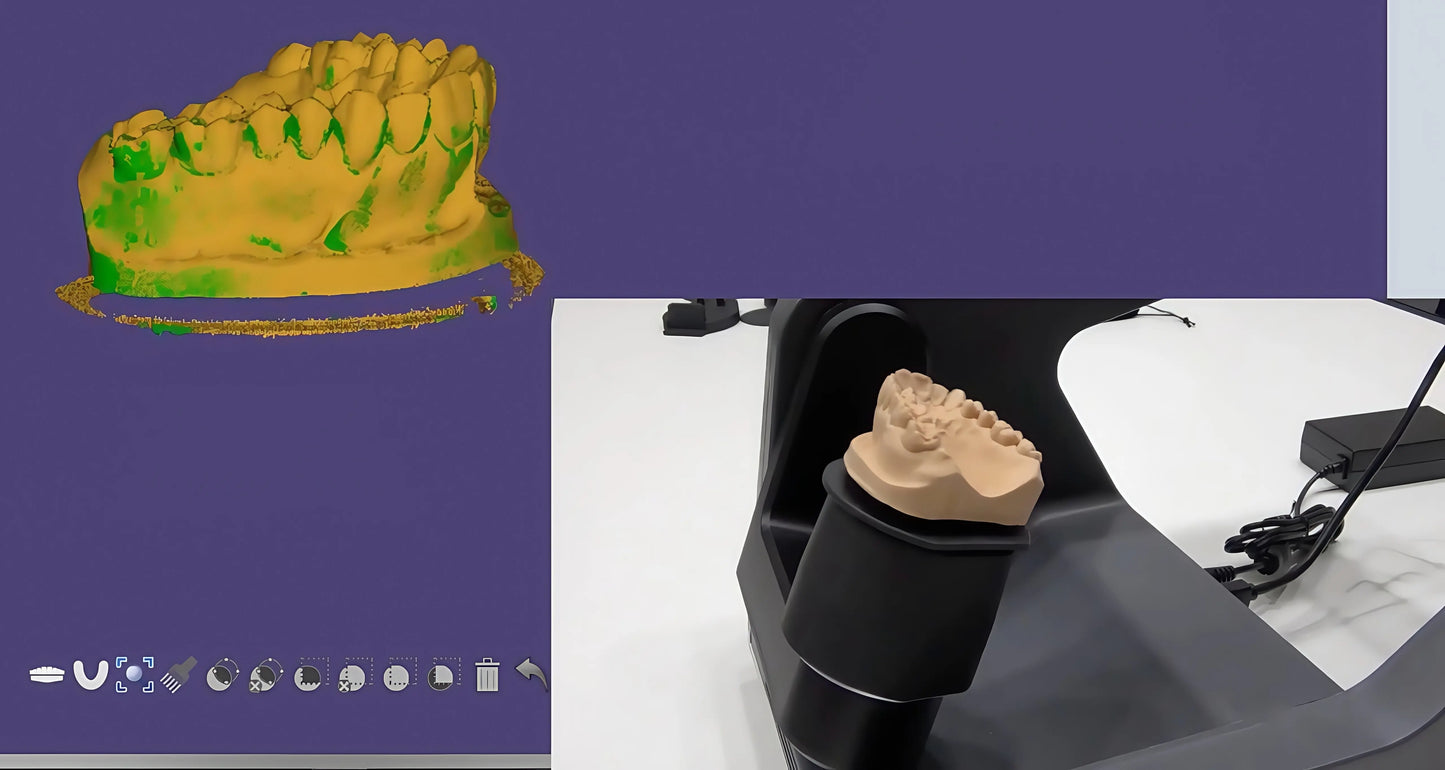

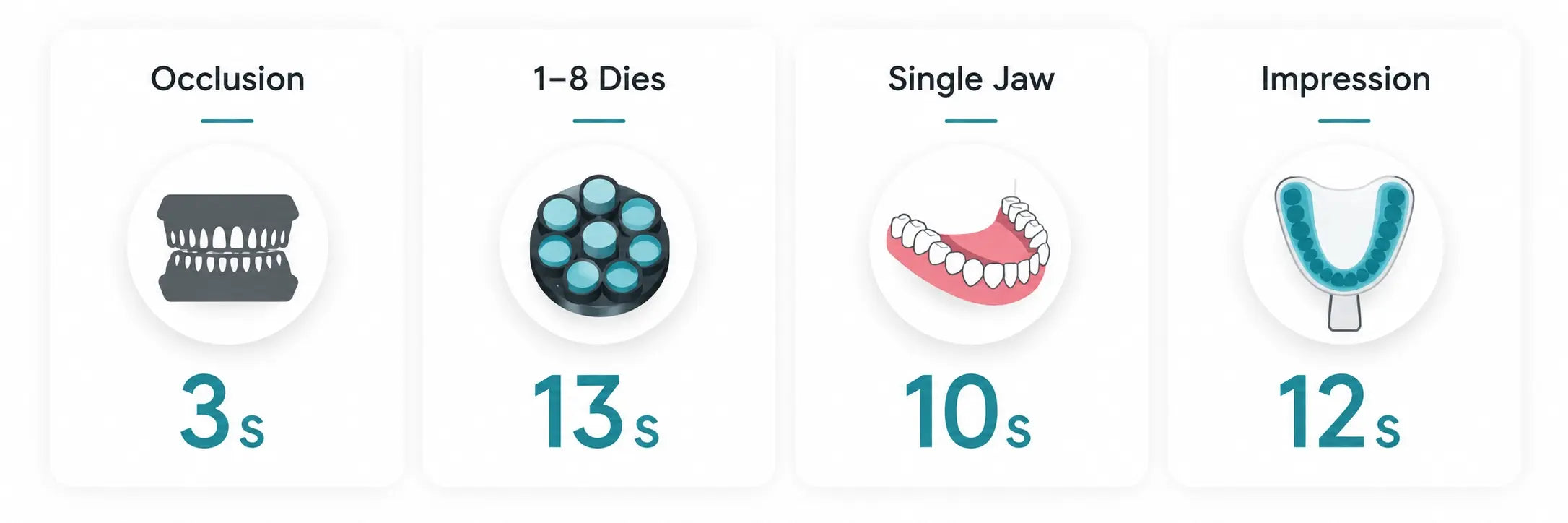

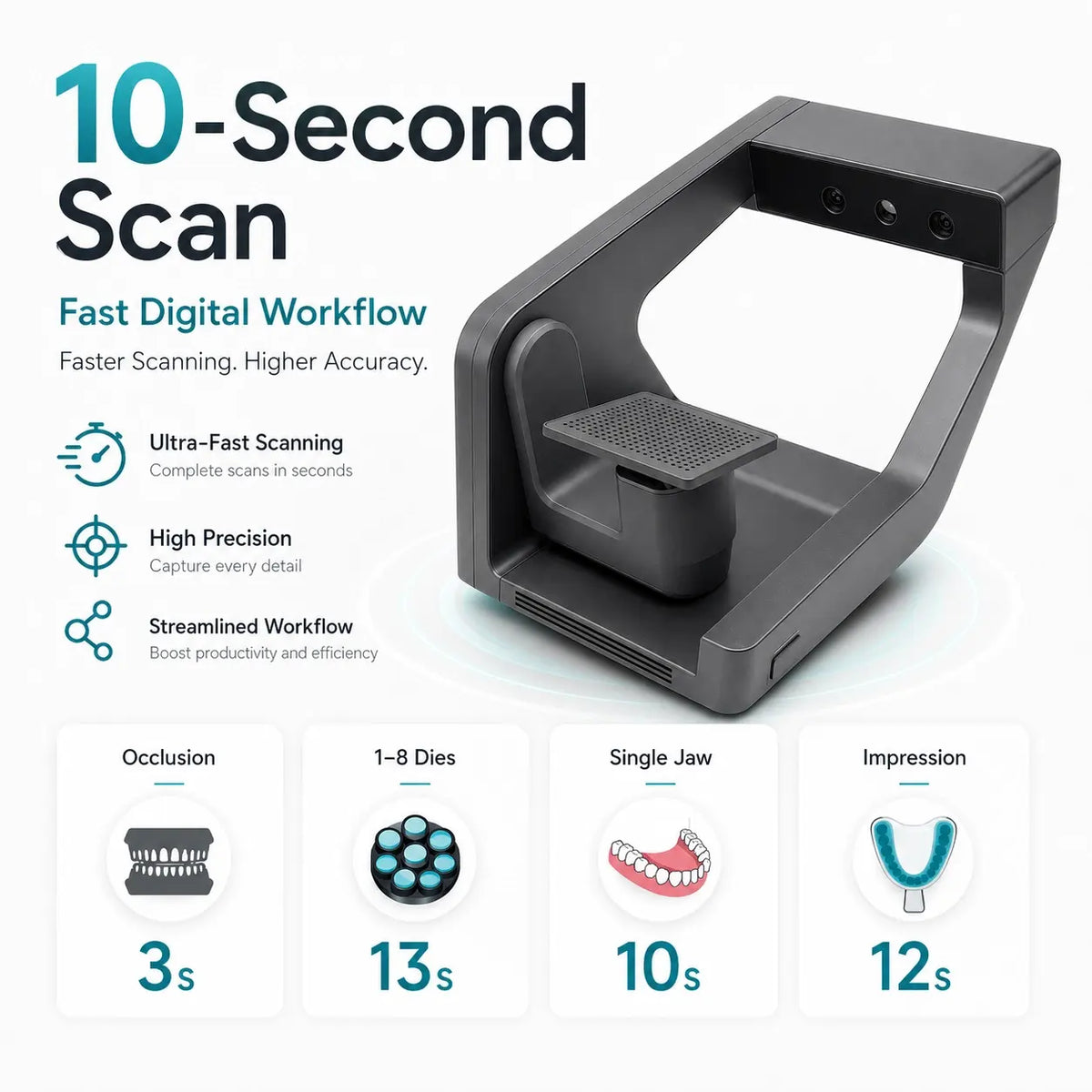

10-Second Single-Jaw Scanning
Complete a single-jaw scan in approximately 10 seconds to reduce routine acquisition time in daily dental laboratory workflows.

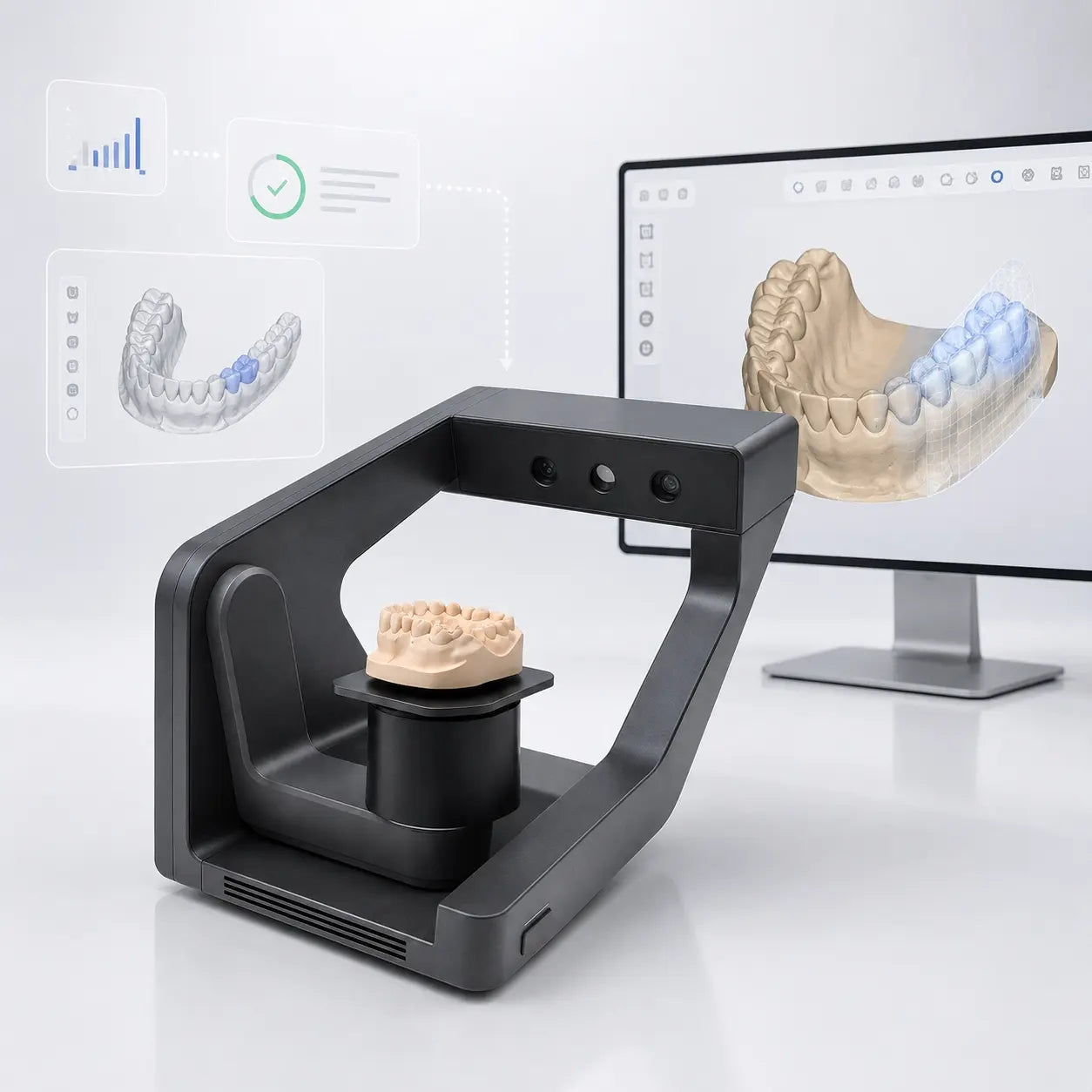

Faster Scanning. Higher Accuracy. Smarter Digital Workflow.
QScan Pro S features an upgraded camera system and optimized mechanical structure, delivering improved scanning speed, stability, and accuracy.
With advanced structured light technology and intelligent software processing, dental laboratories can capture precise digital data faster and achieve a more efficient CAD/CAM workflow.
- Up to 30% Faster Than the Previous Generation
- 3.7MP × 2 High Resolution Camera
- 8 μm Scanning Accuracy

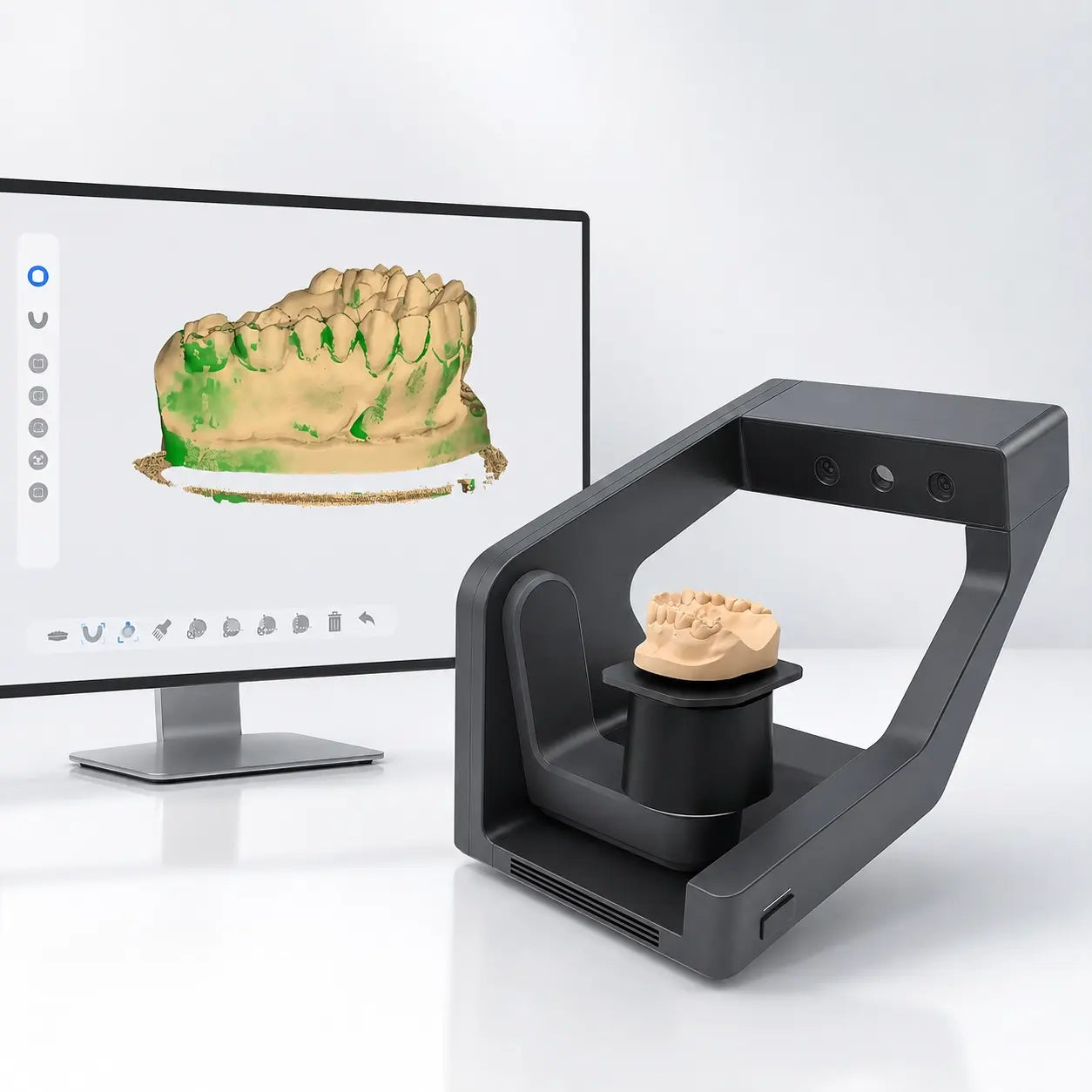

Open CAD/CAM Workflow Integration
Technical Specifications
| Parameter | QScan Pro S |
|---|---|
| Camera Resolution | 3.7MP × 2 |
| Scanning Principle | Three-dimensional Structured Light |
| Accuracy | 8 μm (ISO12836) |
| Scan Area | 100 × 100 × 75 mm |
| Output Format | STL, PLY, OBJ |
| Light Source | LED Blue Light |
| Single Jaw Scan Speed | 11s |
| Occlusion Scan Speed | 3s |
| 1–8 Dies Scan Speed | 13s |
| Impression Scan Speed | 12s |

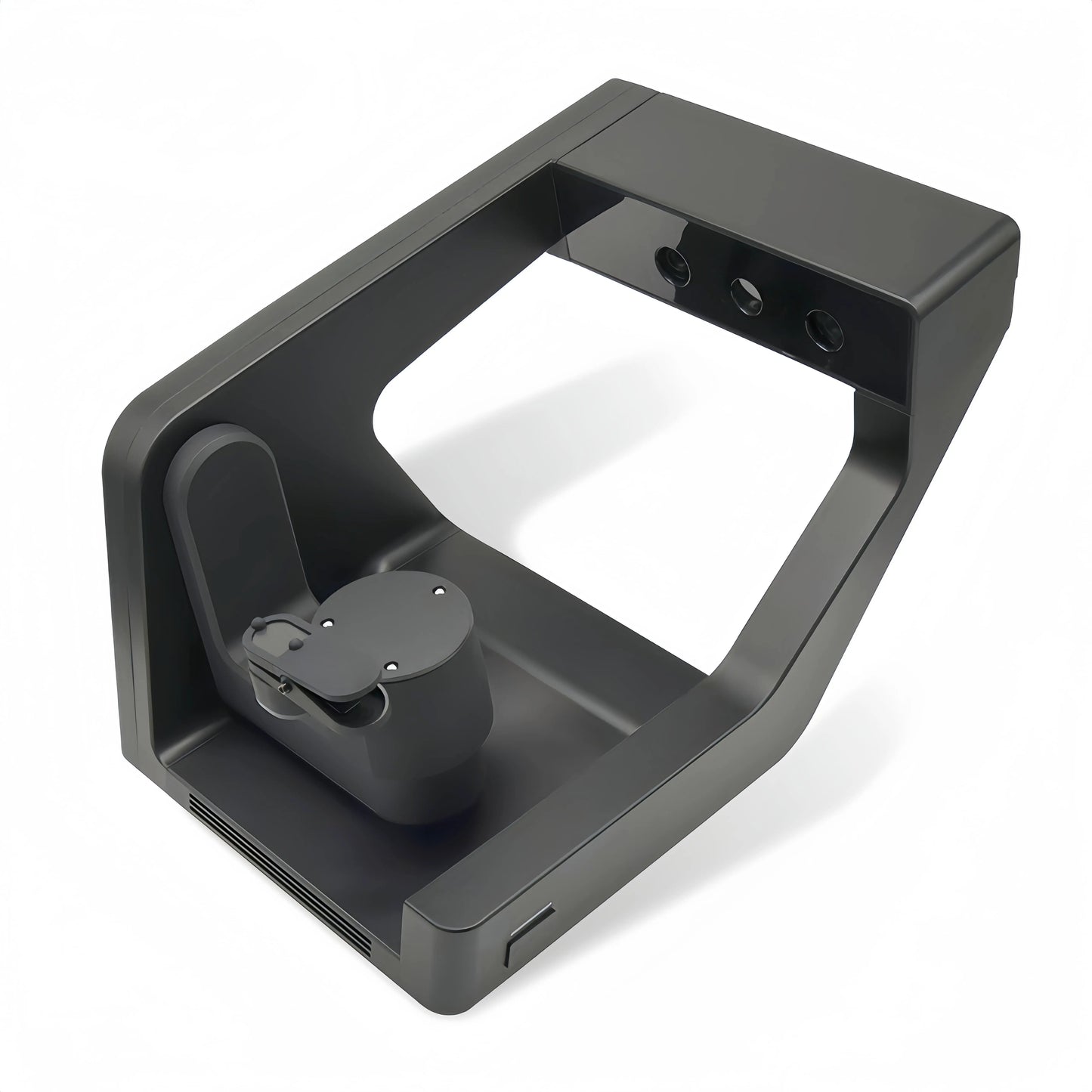

| Texture Scanning | Supported |
| True Color Scanning | Supported |
| Articulator Scan | Supported |
| Dimension | 37 × 35 × 45 cm |
| Weight | 5 kg |
Recommended Computer Configuration
| Component | Requirement |
|---|---|
| CPU | Intel 8th Generation i5 or above |
| GPU | NVIDIA RTX 3060Ti 6G or above |
| RAM | 16GB |
| SSD | 128GB |
| Power Supply | 550W |
Warranty, Software & Technical Support
Complete support from installation to everyday laboratory use.
1-Year Full-System Warranty
Your QScan Pro S scanner is covered by a 1-year full-system warranty, giving your laboratory added confidence in your equipment investment.
Lifetime Free Software
Scanning software is included with your QScan Pro S with no subscription or annual license fees. Software updates and upgrades are provided free of charge.
NO SUBSCRIPTION • NO ANNUAL FEES
Free Remote Setup & Training
Detailed user documentation, free remote software installation and operational guidance are provided after purchase.
Ongoing Technical Support
Free remote assistance is available for software and operational issues to help diagnose problems and minimize laboratory downtime.
What is QScan Pro S mainly used for?
What accuracy does QScan Pro S achieve?
Does QScan Pro S support impression scanning?
Does the scanner support true color scanning?
Is QScan Pro S compatible with CAD/CAM workflows?
What computer configuration is recommended?
Does the QScan Pro S include scanning software?
Are software updates included?
Do you provide installation support?
What technical support is available after purchase?
Need Help Confirming QScan Pro S Compatibility?
Tell us your CAD software, computer configuration and laboratory workflow. Our team can help confirm compatibility and answer technical questions before ordering.
