Calibration Articulator – Compatible with Artex CN｜OnePro Dental

High-Precision Reference Tool for Consistent Mounting

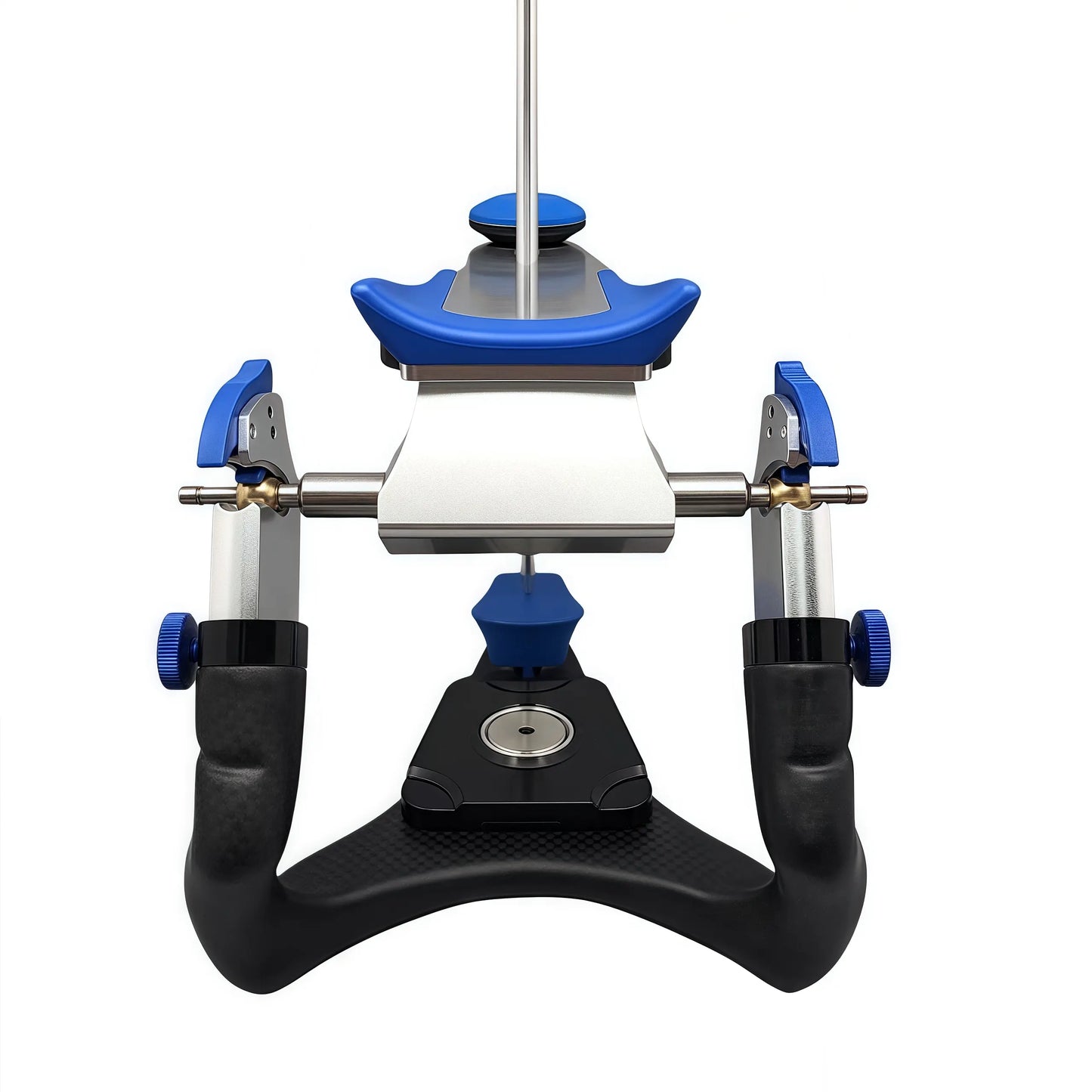

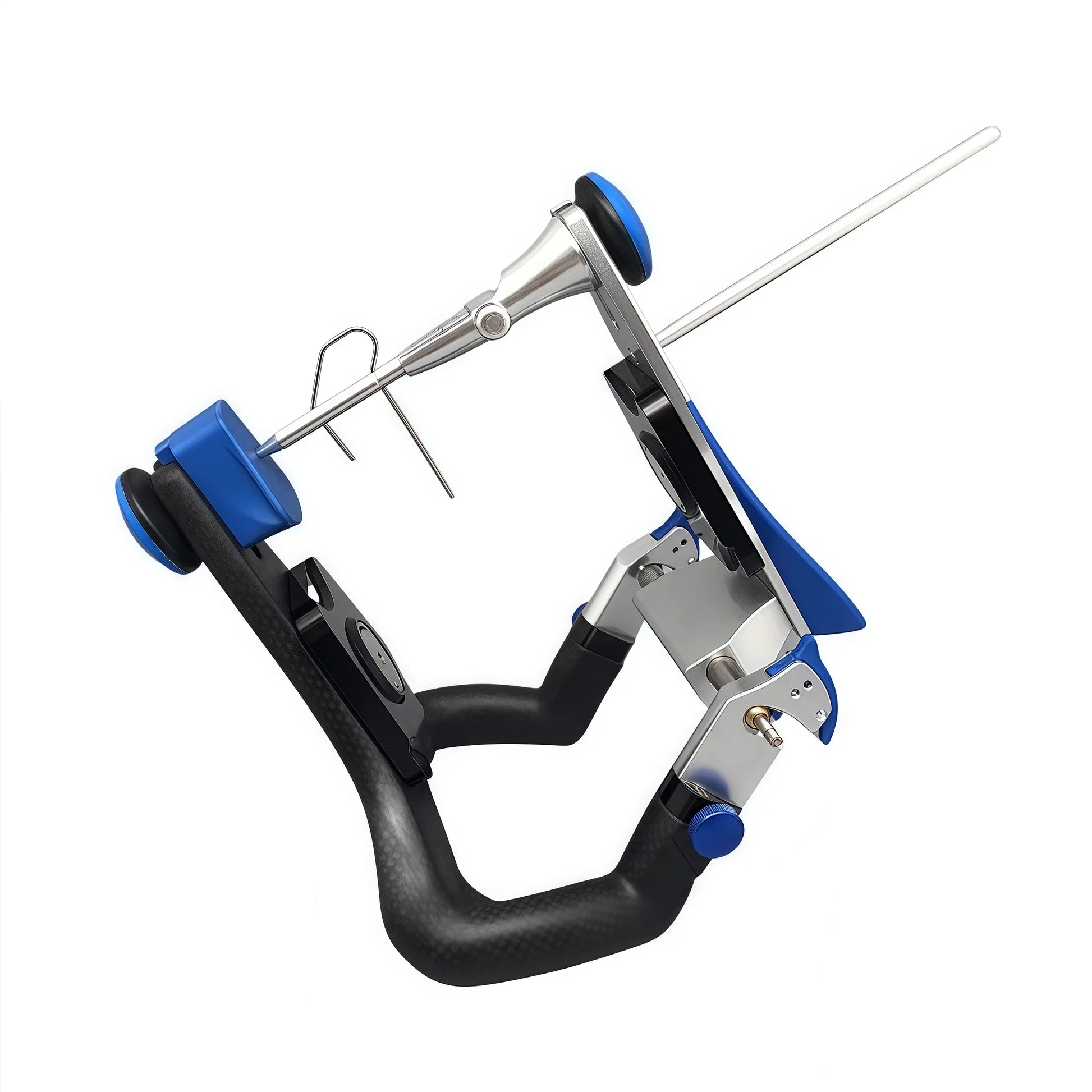

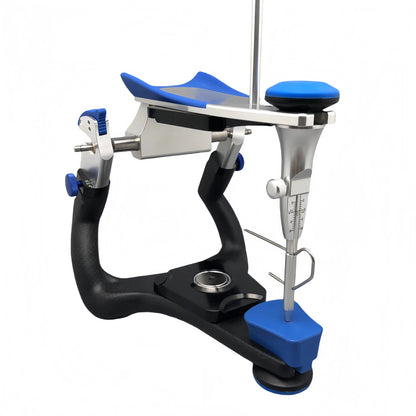

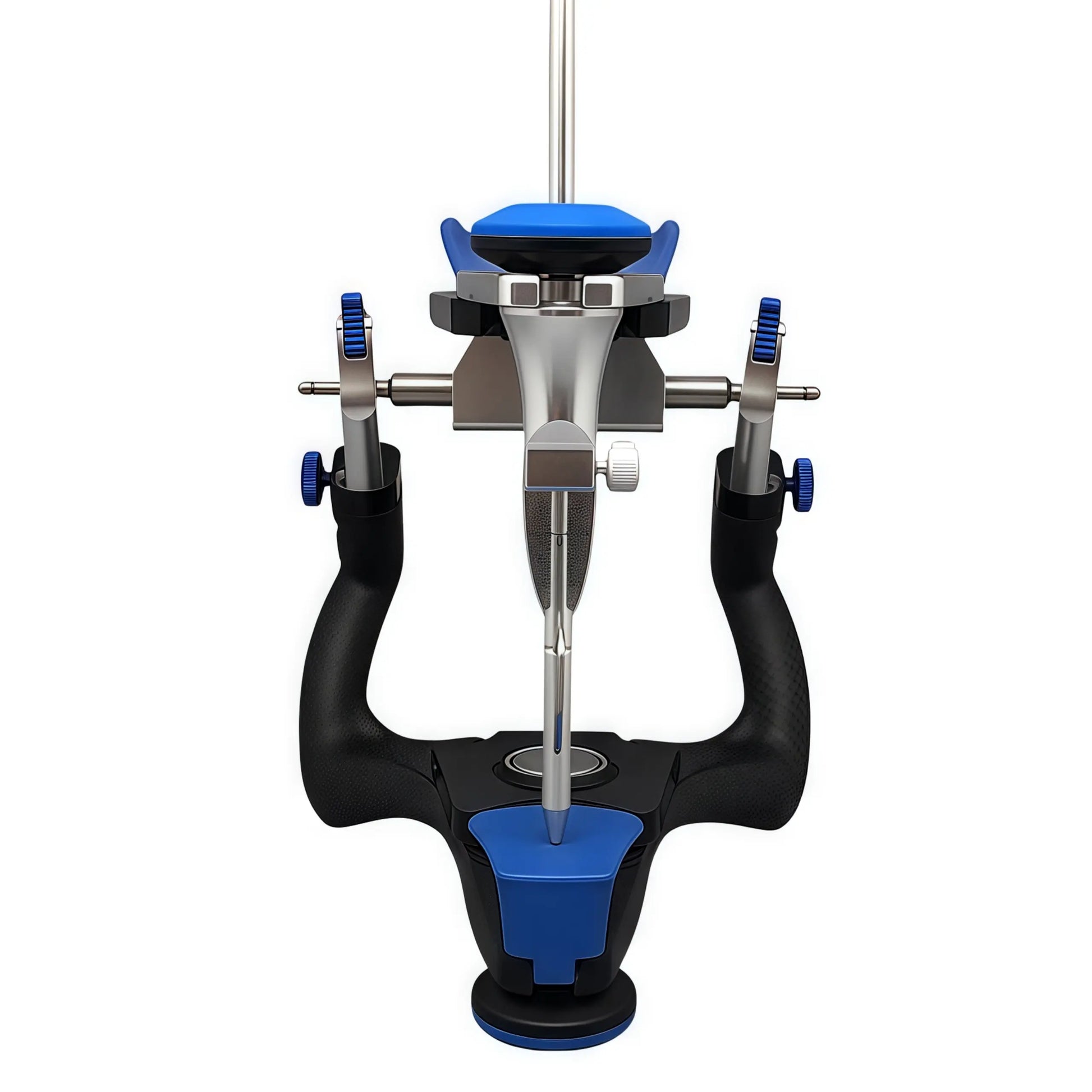

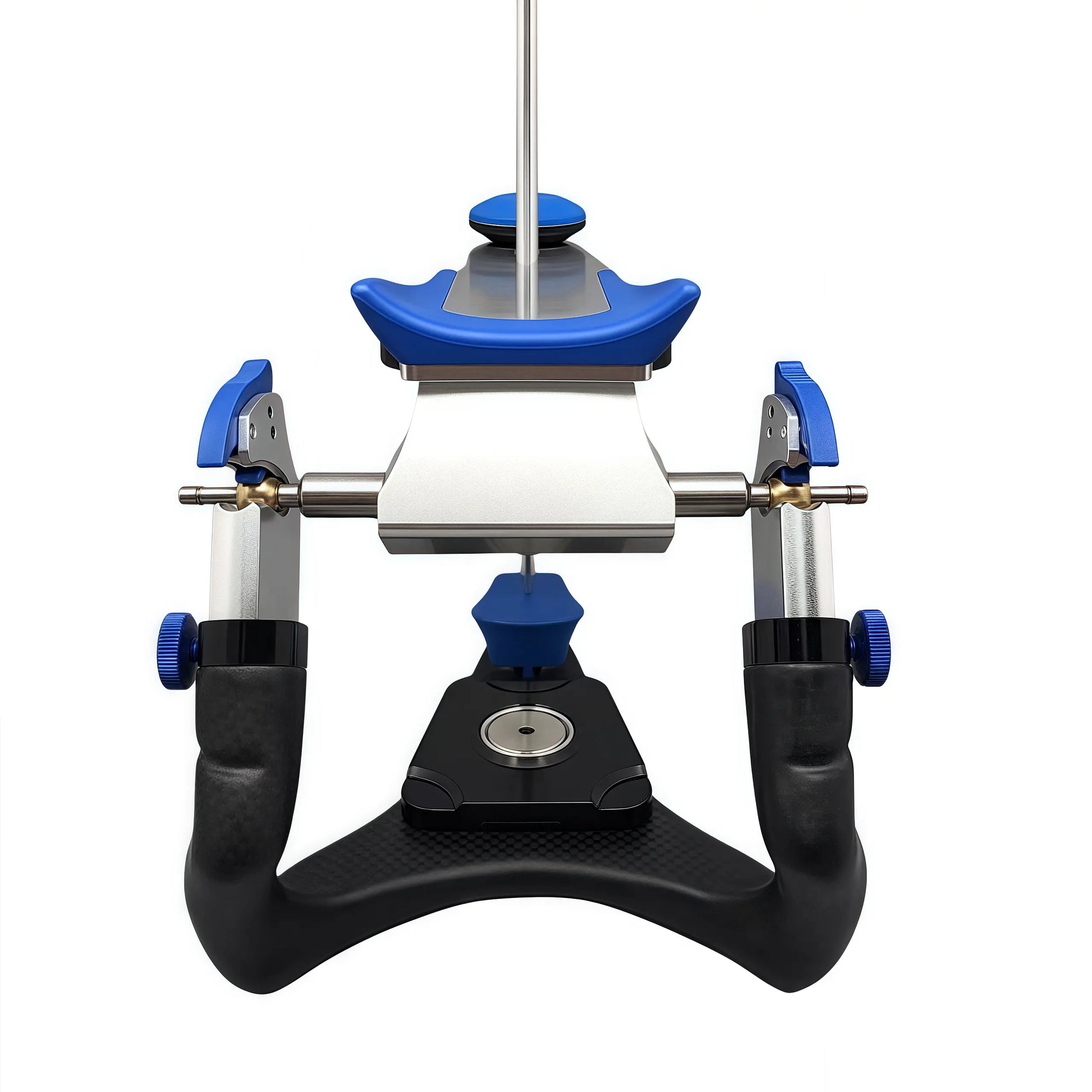

The OnePro Dental Calibration Articulator, expertly designed to be fully compatible with the Artex CN system, is a specialized articulator intended for precise model mounting and standardization. It is not used for simulating jaw movements but instead provides a dependable and reproducible reference position across various articulators in the lab.

Whether you're transferring facebow registrations or ensuring your articulators are consistently aligned, the CN-type articulator is the essential tool to keep your workflow accurate and efficient.

🔧 Technical Specifications (Verified):

• Condylar Inclination (SCI): Fixed at 35°
• Bennett Angle: Adjustable from 0° to 20°
• Intercondylar Distance (Bonwill): 110 mm
• Construction Height (Inner): 126 mm
• Working Positions: 3 tilt-proof positions

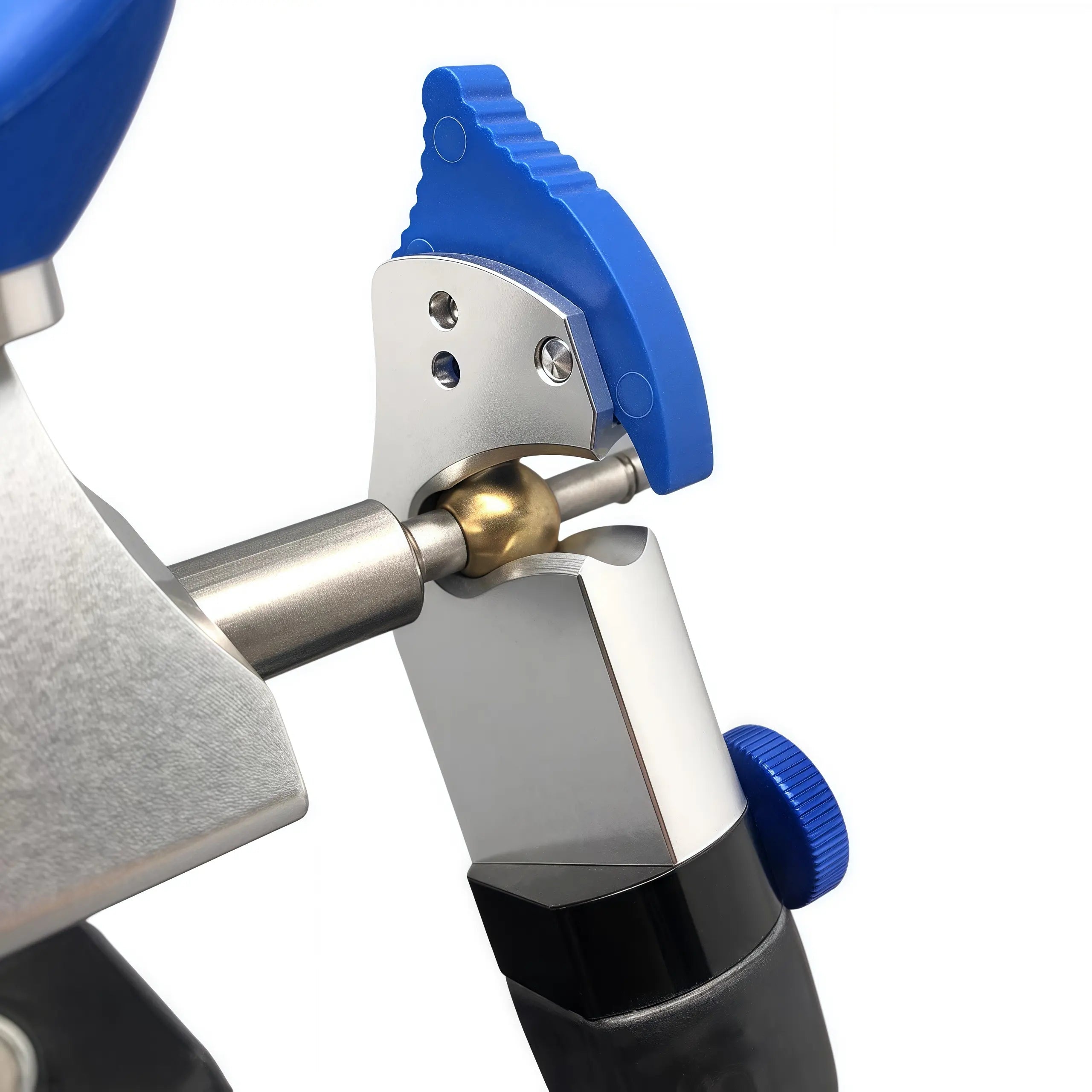

• Centric Locking Mechanism: Click-centrics (fast, secure locking in centric position)
• Design Type: Non-Arcon (Condylar balls on upper arm, guidance path on lower arm)
• Arbitrary Pins: Not included
• Protrusion / Retrusion / ISS / Distraction: Not supported

💡 Key Features:

• 🎯 Reference Accuracy: Maintains reliable calibration across multiple articulators
• 🔄 Perfect for Facebow Transfers: Supports highly accurate mounting of casts from facebow data
• ⚙️ Fast Centric Locking: Click-centric system ensures quick and reproducible centric positioning
• 🔩 Stable Design: Non-Arcon design with 3 stable working positions prevents model tipping
• 🧲 Splitex Compatibility: Magnetic base for easy mounting plate positioning
• 📚 Ideal for Labs & Education: Used in professional dental labs, universities, and training centers

🎯 Best For:

• Dental labs with multiple articulators needing standardized calibration
• Transferring facebow data from clinical to laboratory use
• Institutions offering prosthetic training and occlusal analysis
• Labs working with Artex-compatible systems

🌎 Why Choose OnePro Dental?

• ✅ Compatible with Artex CN & standard lab systems
• ✅ Built for reference consistency and alignment
• ✅ Precision-engineered from high-quality alloy materials
• ✅ Global shipping with free shipping over $500
• ✅ Trusted by 300+ labs worldwide
